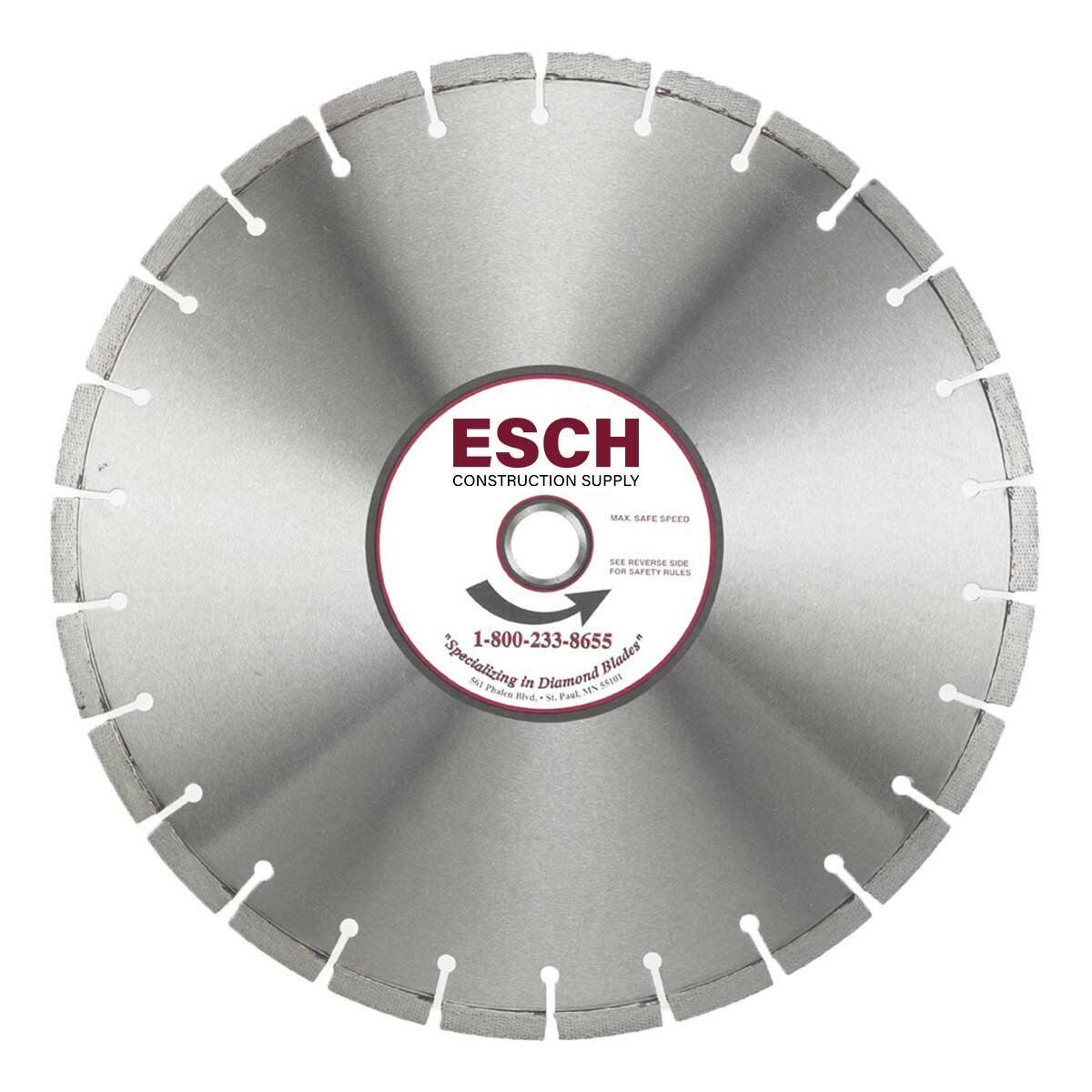

EDCPRO+ Diamond Blade for Concrete & Block
• Save $10 per blade when you buy 6 blades • Save $15 per blade when you buy 12 blades.
See EschSupply.com/deals for more details.
Features:
- Ideal for cutting concrete and block
- Available in sizes 12" - 24"
- Arbor Size: 1" or 20mm
PRODUCT SPECS | |
|---|---|
| Diameters | 12", 14", 16", 18", 24" |
| Arbor | 1" and 20mm |
| Thickness | .125, .155, .250 |
| Material | Concrete, Block |
• Walk-Behind Sawing Best Practices for Efficient Cutting - Use your walk-behind saw with more success by following these best practices.
• Diamond Blade Cutting Depths Guide - Know your maximum cutting depth based on your blade diameter and the equipment you're using.
• Blade Selection Chart for Walk-Behind Saws - Get the right blade for your next walk-behind sawing project to cut further, faster.
• Concrete Cutting Tips - Step Cutting - Increase walk-behind sawing productivity by following the “step cutting” technique.
Diamond Blade Cutting Depths
Blade Diameter | Max. Cutting Depth |
9" | 3" |
10" | 3.94" |
12" | 4" |
14" | 5" |
16" | 6" |
Diamond Blade Recommended RPMs
Blade Diameter | Recommended RPM | Max. RPM |
4" | 9072 | 15000 |
4- ½" | 8063 | 13300 |
5" | 7257 | 12000 |
6" | 6048 | 10185 |
7" | 5184 | 8730 |
8" | 4536 | 7640 |
9" | 4032 | 6790 |
10" | 3629 | 6115 |
12" | 3024 | 5095 |
12" High Speed | N/A | 6300 |
14" | 2592 | 4395 |
14" High Speed | N/A | 5400 |
16" | 2268 | 3820 |
16 High Speed | N/A | 4725 |
18" | 2016 | 3395 |
20 | 1814 | 3055 |
22 | 1649 | 2780 |
24" | 1512 | 2550 |
26 | 1396 | 2350 |
28" | 1296 | 2185 |
30 | 1210 | 2040 |
32" | 1134 | 1910 |
36" | 1008 | 1700 |
42" | 864 | 1455 |
48" | 756 | 1275 |
