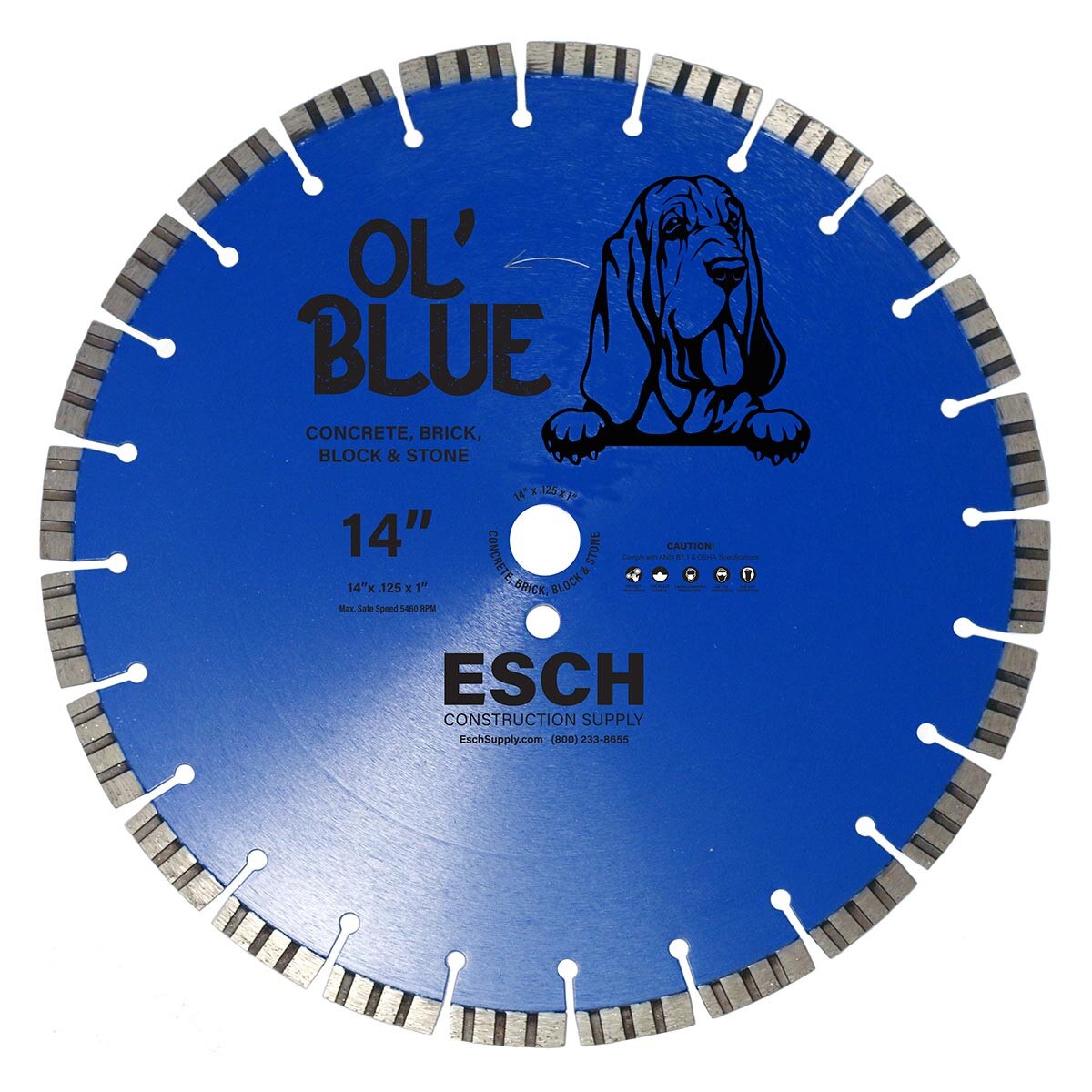

Ol' Blue Concrete and Masonry Diamond Blade
STOCK UP AND SAVE ON 14-INCH BLADES
Valid for select 14" Blades only, some exclusions apply. 1-time use. See EschSupply.com/deals for details. |
Finance your next purchase with any of our available Ol' Blue Concrete and Masonry Diamond Blade is ideal for cutting cured concrete, block, and brick. A reliable diamond blade that every contractor needs with them on their job site. The Ol Blue concrete and masonry diamond saw blade is engineered for maximum cutting performance and long life.
Features:
- Ideal for cutting cured concrete, block, brick, and other hard materials.
- Soft-bond matrix for use on hard materials for fast, aggressive, clean cutting.
- Available in 12" 14" and 16" with 1" or 20 mm arbor
PRODUCT SPECS | |
|---|---|

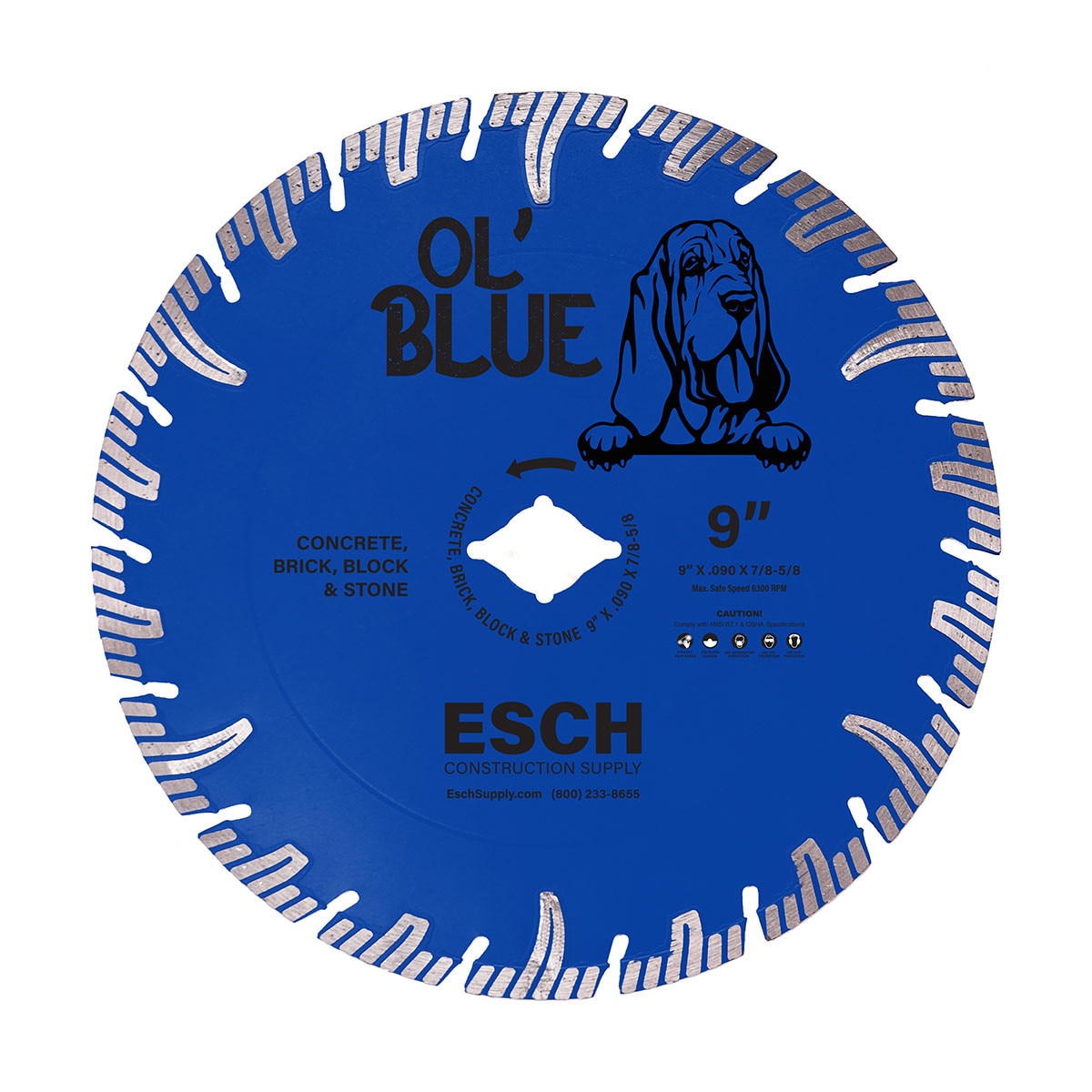

| Diameter | 9" |
| Width | .08" |
| Arbor | UA |
| Application | Concrete, Masonry, Hard Materials |
| MAX RPM | 6790 |
PRODUCT SPECS | |
|---|---|
| Diameter | 12, 14, 16 |
| Width | .125 |
| Arbor | 1" and 20" |
| Segment Height | .400 |
| Application | Concrete, Masonry, Hard Materials |
| MAX RPM | 5460 |
Solutions for Common Diamond Blade Issues - Maximize Blade Performance- Extend the life of your diamond blade by knowing how to prevent common diamond blade problems.
Diamond Blade Cutting Depths Guide - Understand how deep you can cut based on the equipment you're using and the size of your diamond blade.
5 Steps to Select the Right Diamond Blade - Get the right blade based on the cutting application. Cut further, faster with the right blade from Esch.
Diamond Blade Cutting Depths
Blade Diameter | Max. Cutting Depth |
9" | 3" |
10" | 3.94" |
12" | 4" |
14" | 5" |
16" | 6" |
Diamond Blade Recommended RPMs
Blade Diameter | Recommended RPM | Max. RPM |
4" | 9072 | 15000 |
4- ½" | 8063 | 13300 |
5" | 7257 | 12000 |
6" | 6048 | 10185 |
7" | 5184 | 8730 |
8" | 4536 | 7640 |
9" | 4032 | 6790 |
10" | 3629 | 6115 |
12" | 3024 | 5095 |
12" High Speed | N/A | 6300 |
14" | 2592 | 4395 |
14" High Speed | N/A | 5400 |
16" | 2268 | 3820 |
16 High Speed | N/A | 4725 |
18" | 2016 | 3395 |
20 | 1814 | 3055 |
22 | 1649 | 2780 |
24" | 1512 | 2550 |
26 | 1396 | 2350 |
28" | 1296 | 2185 |
30 | 1210 | 2040 |
32" | 1134 | 1910 |
36" | 1008 | 1700 |
42" | 864 | 1455 |
48" | 756 | 1275 |
