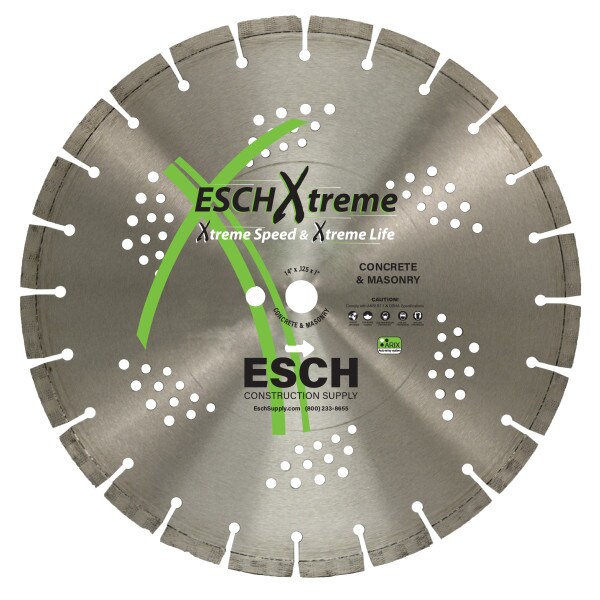

EschXtreme Diamond Blade for Green Concrete
STOCK UP AND SAVE ON 14-INCH BLADES
Valid for select 14" Blades only, some exclusions apply. 1-time use. See EschSupply.com/deals for details. |
Finance your next purchase with any of our available The EschXtreme Diamond Blade is the #1 choice for a fast-cutting, long-lasting green concrete blade. The EschX is manufactured with a strong, steel core and ARIX™ cool-core technology. Sturdy, laser-welded segments allow for longer, straighter cuts.
Features:
- Ideal for cutting control joints in green concrete.
- Available in 12", 14" and 16" diameter.
- Arbor Size: 1" or 20 mm.
PRODUCT SPECS | |
|---|---|
| Diameter | 12, 14, 16 |
| Width | .125 |
| Arbor | 1" and 20mm |
| Segment Height | .400 |
Solutions for Common Diamond Blade Issues - Maximize Blade Performance- Extend the life of your diamond blade by knowing how to prevent common diamond blade problems.
Diamond Blade Cutting Depths Guide - Understand how deep you can cut based on the equipment you're using and the size of your diamond blade.
5 Steps to Select the Right Diamond Blade - Get the right blade based on the cutting application. Cut further, faster with the right blade from Esch.
Diamond Blade Cutting Depths
Blade Diameter | Max. Cutting Depth |
9" | 3" |
10" | 3.94" |
12" | 4" |
14" | 5" |
16" | 6" |
Diamond Blade Recommended RPMs
Blade Diameter | Recommended RPM | Max. RPM |
4" | 9072 | 15000 |
4- ½" | 8063 | 13300 |
5" | 7257 | 12000 |
6" | 6048 | 10185 |
7" | 5184 | 8730 |
8" | 4536 | 7640 |
9" | 4032 | 6790 |
10" | 3629 | 6115 |
12" | 3024 | 5095 |
12" High Speed | N/A | 6300 |
14" | 2592 | 4395 |
14" High Speed | N/A | 5400 |
16" | 2268 | 3820 |
16 High Speed | N/A | 4725 |
18" | 2016 | 3395 |
20 | 1814 | 3055 |
22 | 1649 | 2780 |
24" | 1512 | 2550 |
26 | 1396 | 2350 |
28" | 1296 | 2185 |
30 | 1210 | 2040 |
32" | 1134 | 1910 |
36" | 1008 | 1700 |
42" | 864 | 1455 |
48" | 756 | 1275 |
