The Ace of Diamonds Premium Diamond Blade for Concrete and Asphalt - 14" or 16"
• Save $10 per blade when you buy 6 blades • Save $15 per blade when you buy 12 blades.
See EschSupply.com/deals for more details.

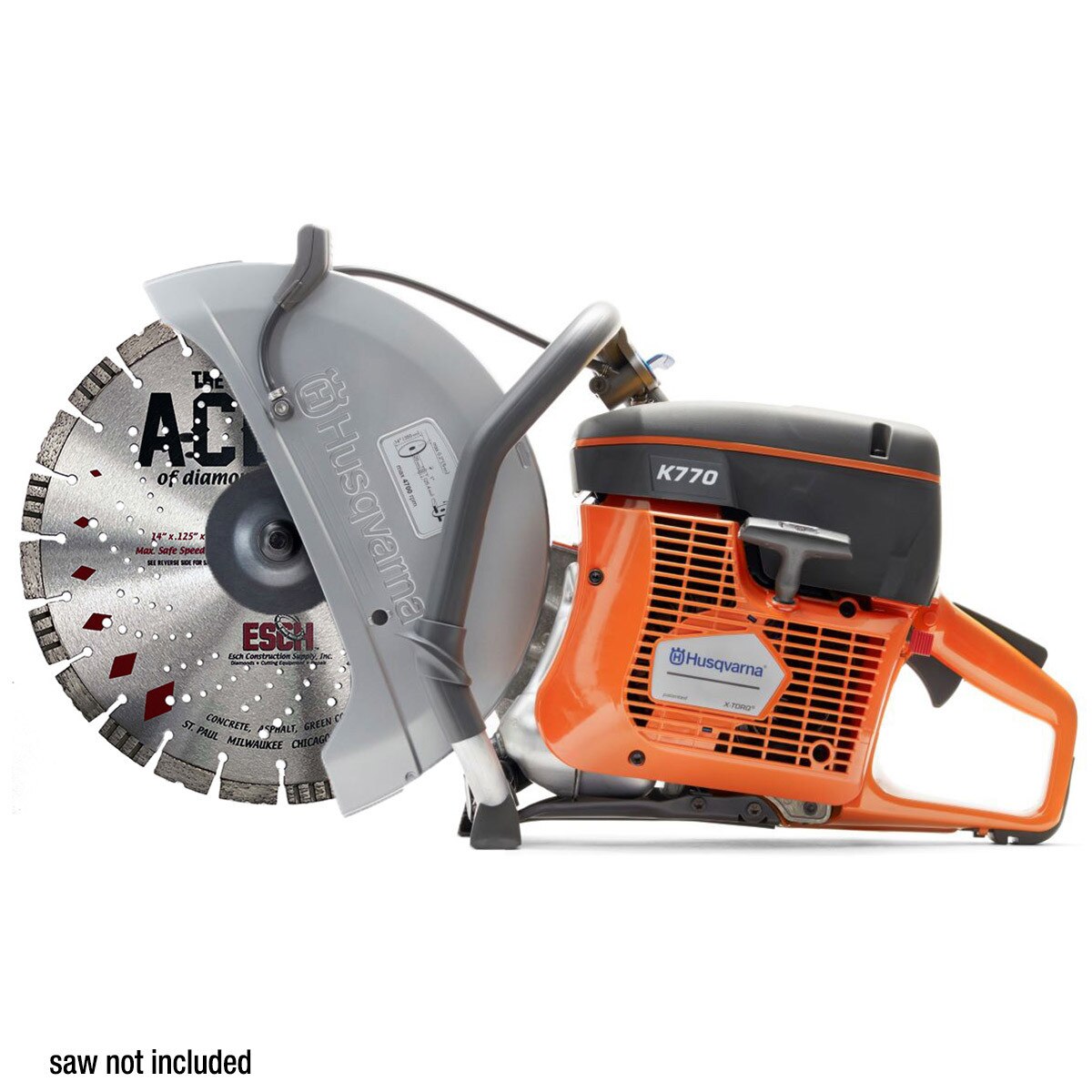

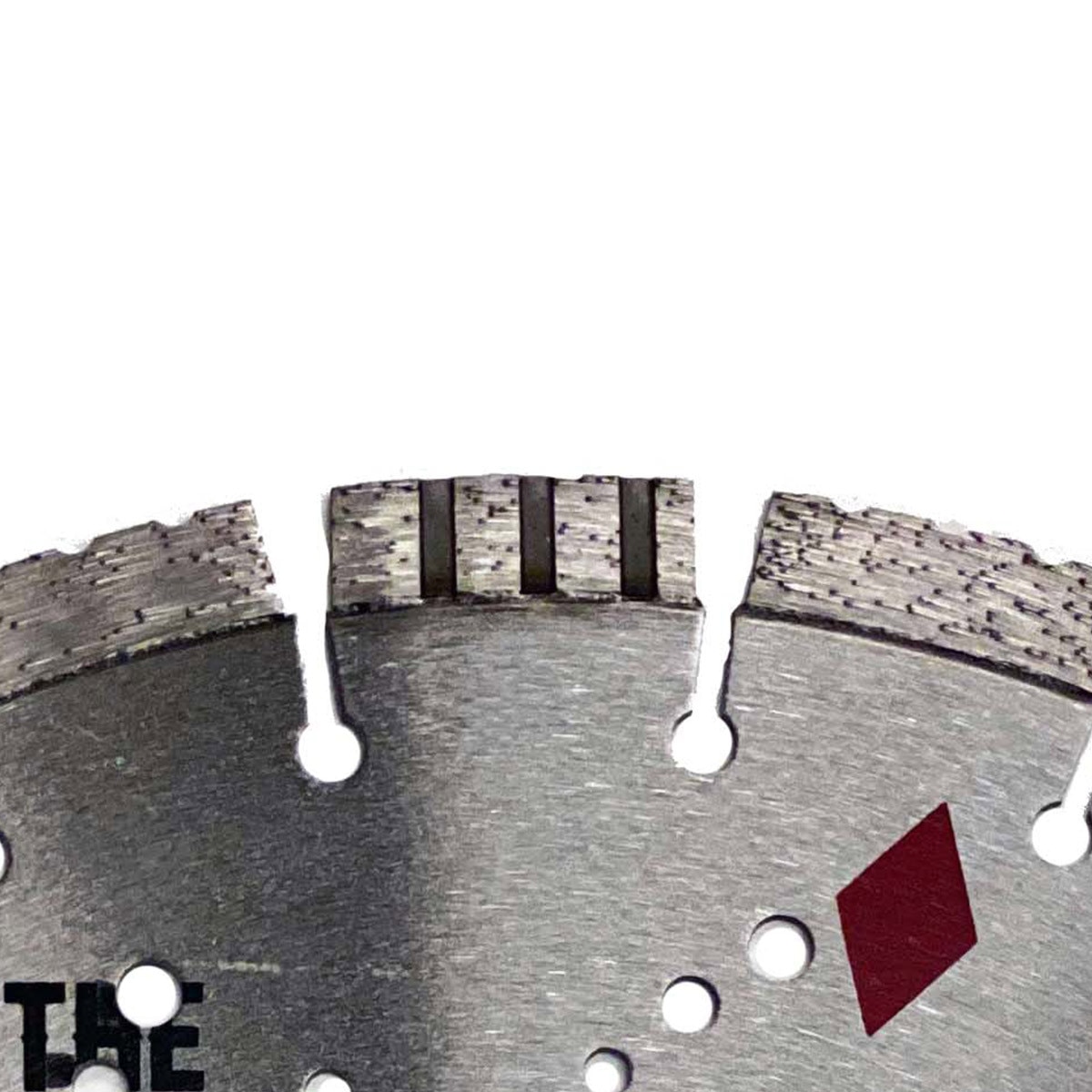

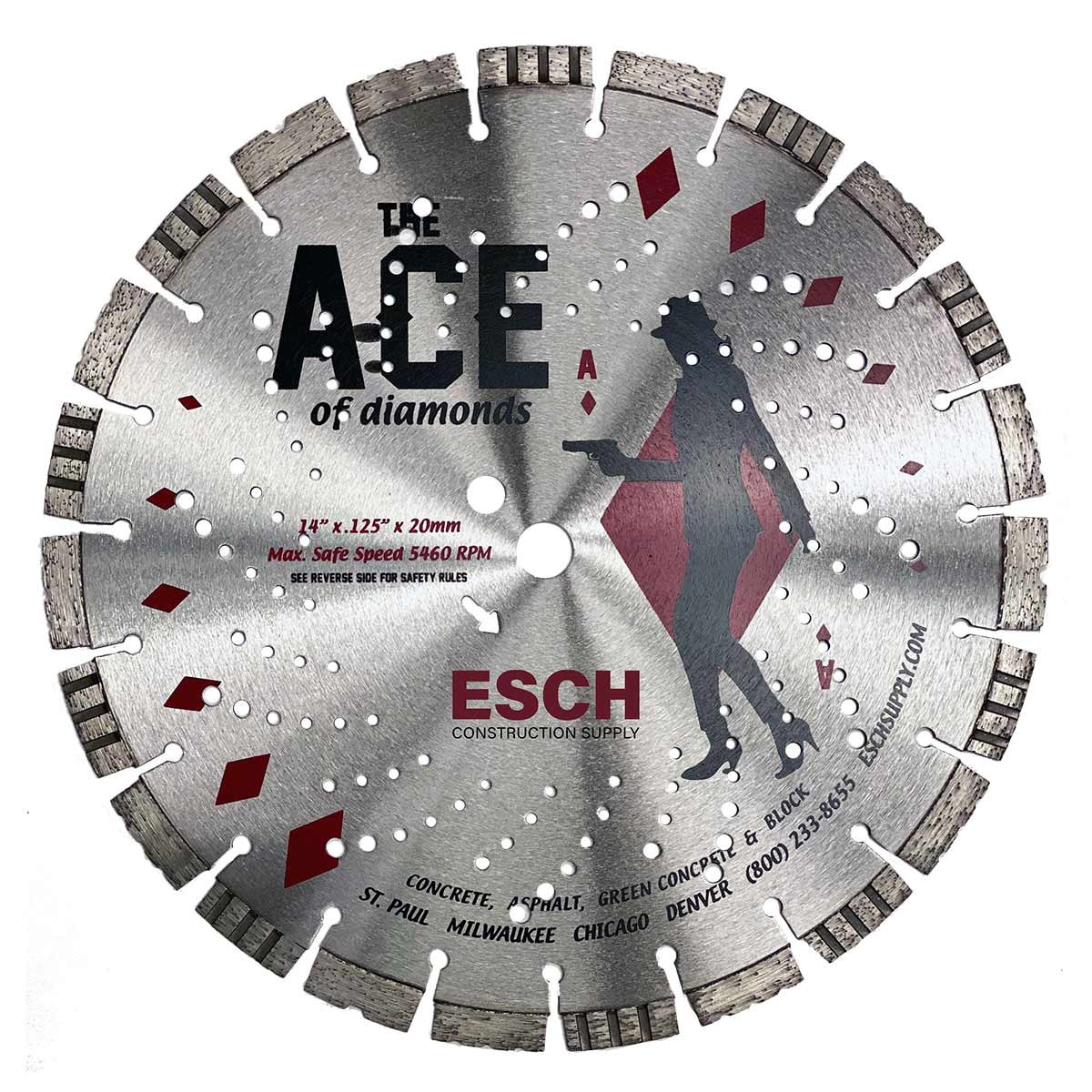

The Ace of Diamonds - A Premium Diamond Blade for Concrete & Asphalt Cutting
The Ace of Diamonds is a high-quality Diamond Blade For Cutting Concrete and Cutting Asphalt. A high-speed blade for your cut-off saw with an extra-long life. Crafted from high-quality materials, our diamond blades are engineered to provide long-lasting cutting power, making them a reliable choice for contractors and craftsmen alike. The Ace is versatile and suitable for both wet and dry cutting applications, offering flexibility for various project requirements. Manufactured with advanced laser-cut segments and a segmented rim design, our diamond blades ensure clean, precise cuts through concrete, masonry, and more.
Key Features:
• Contractor's diamond blade choice for cutting concrete and asphalt.
• High-speed diamond segments make The Ace of Diamonds is a top-of-class diamond blade.
• Made with a Thick, High-Grade Steel Core with Cool Core Technology.
• Available in 14 in &16 in sizes, with 1 in or 20 mm arbor.
Why Choose The Ace of Diamonds?
• Exceptional cutting power cuts through concrete and asphalt at unrivaled speeds. The Ace of Diamonds has extended life thanks to core-cooling technology and the concentration of high-quality diamond segments.
• The versatility of The Ace of Diamonds, being able to cut concrete and asphalt at high speeds makes it a top choice for top saw operators.
• Top Contractors Trust The Ace of Diamonds to be their go-to saw blade. Longer Life - High Cutting Speeds
Upgrade to The Ace of Diamonds Diamond Blade For contractors who demand the best, The Ace of Diamonds is the go-to choice for tackling the toughest concrete and asphalt projects with ease. Cheaper blades may have lower diamond quality, and less precise bonding leading to a shorter lifespan and slower cutting speeds. Invest in a high-quality diamond blade suitable for your cutting needs.
| SPECS | |
|---|---|
| Diameter | 14" / 16" |
| Thickness | .125" |
| Arbor | 1" / 20 MM |
| Max RPM | 5460 RPM / 4725 RPM |
| Max Cutting Depth | 5" / 6" |
| Application | Concrete, Asphalt, Green Concrete & Block |
Solutions for Common Diamond Blade Issues - Maximize Blade Performance- Extend the life of your diamond blade by knowing how to prevent common diamond blade problems.
Diamond Blade Cutting Depths Guide - Understand how deep you can cut based on the equipment you're using and the size of your diamond blade.
5 Steps to Select the Right Diamond Blade - Get the right blade based on the cutting application. Cut further, faster with the right blade from Esch.
Diamond Blade Cutting Depths
Blade Diameter | Max. Cutting Depth |
9" | 3" |
10" | 3.94" |
12" | 4" |
14" | 5" |
16" | 6" |
Diamond Blade Recommended RPMs
Blade Diameter | Recommended RPM | Max. RPM |
4" | 9072 | 15000 |
4- ½" | 8063 | 13300 |
5" | 7257 | 12000 |
6" | 6048 | 10185 |
7" | 5184 | 8730 |
8" | 4536 | 7640 |
9" | 4032 | 6790 |
10" | 3629 | 6115 |
12" | 3024 | 5095 |
12" High Speed | N/A | 6300 |
14" | 2592 | 4395 |
14" High Speed | N/A | 5400 |
16" | 2268 | 3820 |
16 High Speed | N/A | 4725 |
18" | 2016 | 3395 |
20 | 1814 | 3055 |
22 | 1649 | 2780 |
24" | 1512 | 2550 |
26 | 1396 | 2350 |
28" | 1296 | 2185 |
30 | 1210 | 2040 |
32" | 1134 | 1910 |
36" | 1008 | 1700 |
42" | 864 | 1455 |
48" | 756 | 1275 |
