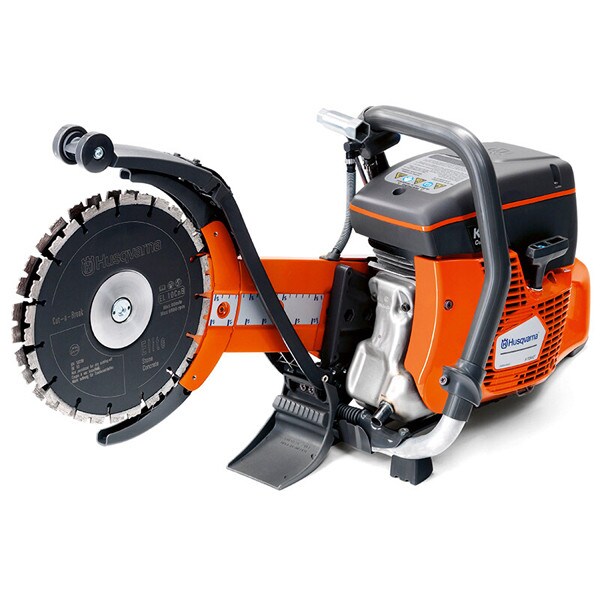

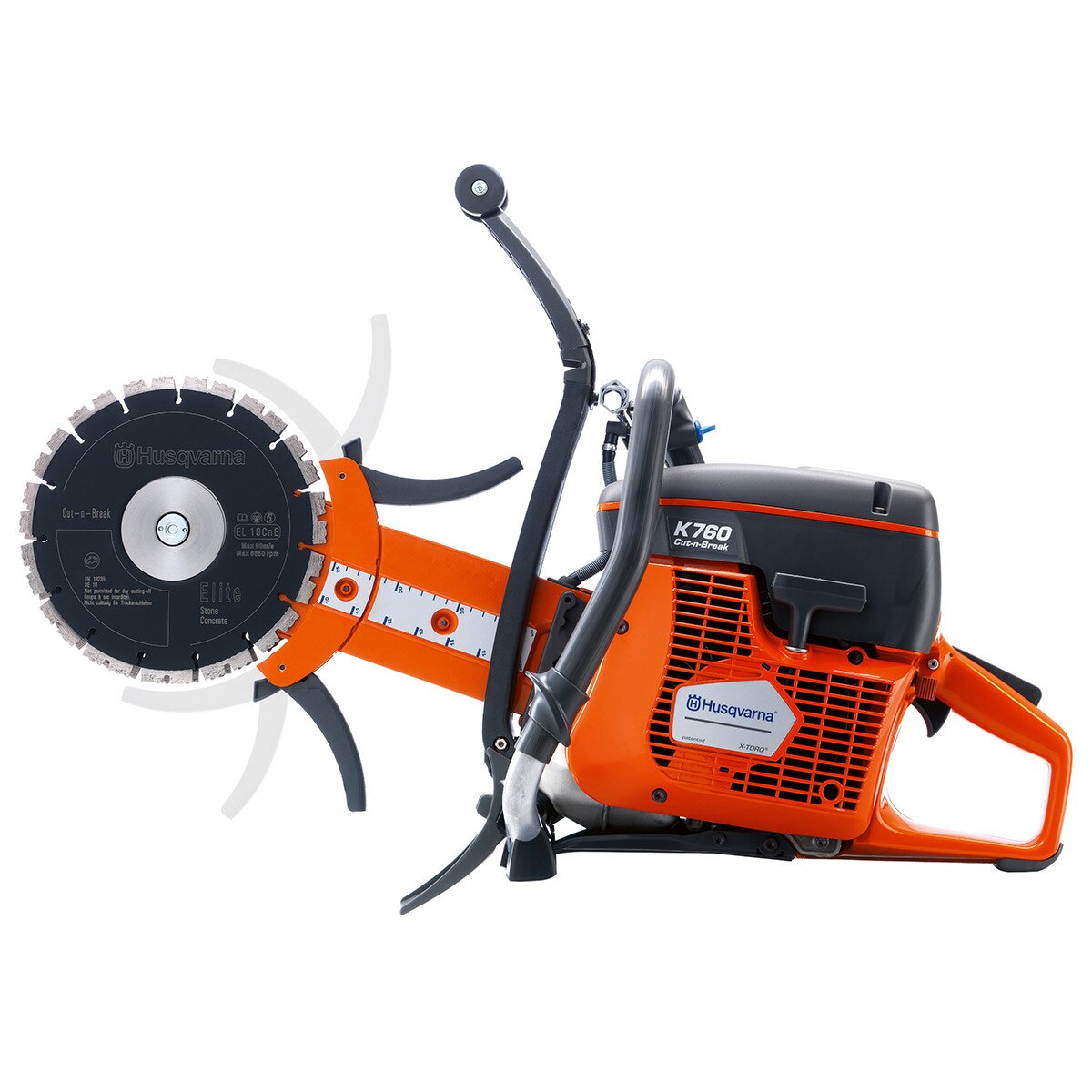

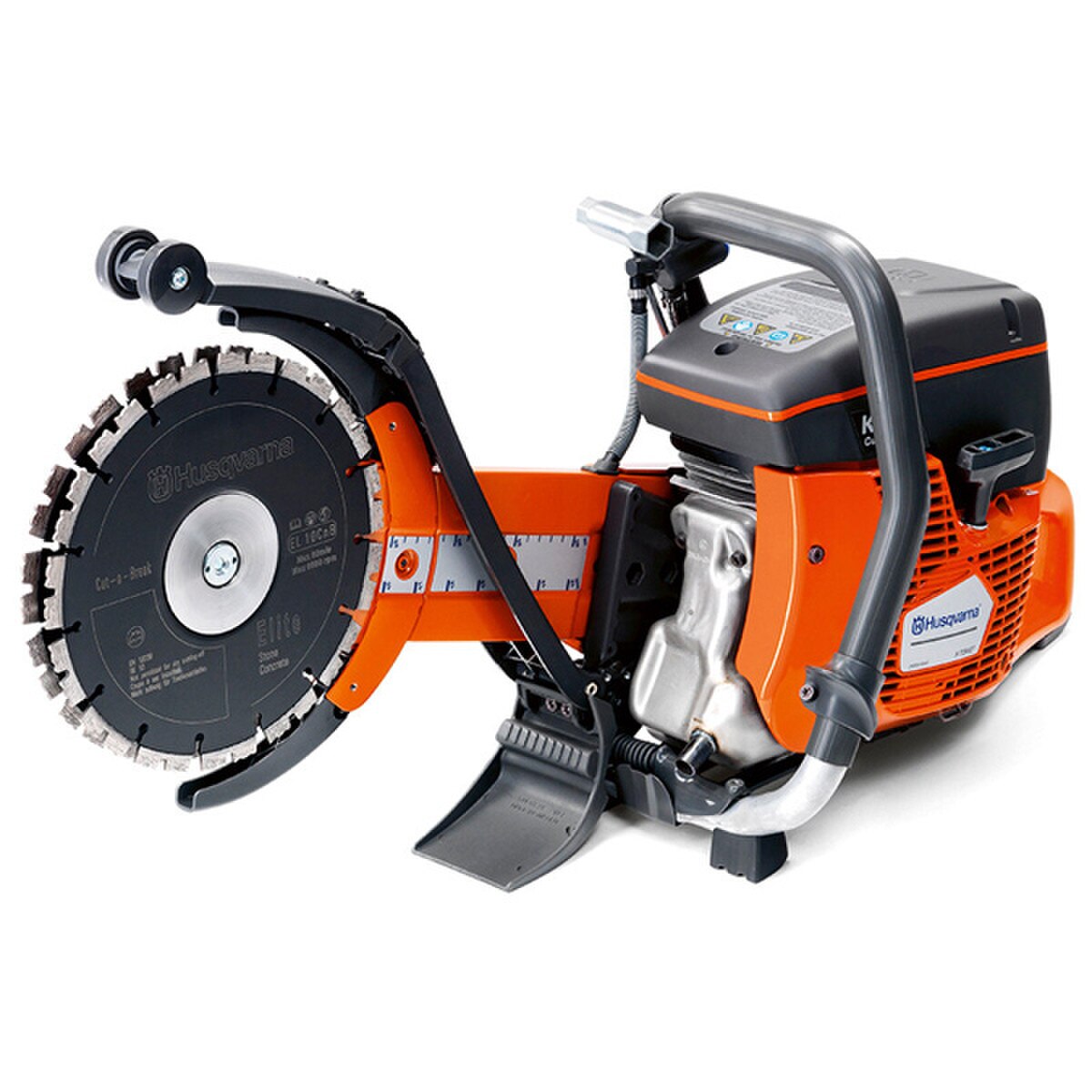

Husqvarna K760 Gas Cut-N-Break Saw
The K 760 Cut-n-Break enables you to cut as deep as 16" from one side. The two high-speed blades make a core in the saw cut, which can then easily be broken off using the accompanying breaking tool. This way you easily work your way through the material, at a very low diamond tool and maintenance cost. Delivered with twin blades and a breaking tool.
Features:

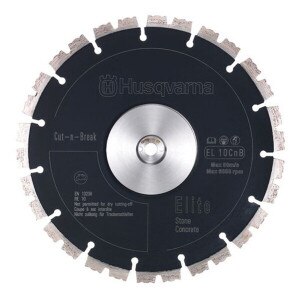

- Dual 9" Diamond concrete Blades included
- Precision openings for doors, windows, HVAC ductwork, pipes, and more can be economically made using the Cut-n-Break system
- Ideal for window and door openings where you don't want overcutting at the corners
- Grooves can be quickly cut to create a channel for up to 3/4" wide, perfect for water lines and electrical conduit in a single pass
- SmartCarb, a built-in automatic filter compensation, maintains high power and lower fuel consumption
- Active Air Filtration, centrifugal air cleaning, extends product life and service intervals
- Each cut can be up to 2.5" deep
- Since the cutter has twin blades, a core is formed in the saw cut
- The core can easily be broken off, using the accompanying breaking tool
- When the core has been broken off, continue cutting until the required depth is reached, Maximum 16"
- EasyStart provides 50% easier starts
- DuraStarter reduces wear on the starter
- The double blade system also aids in faster crack renovation and expansion joint repair
- Excellent for cutting when burying signal cables
- Integrated water head kit
- Air-cooled, two-cycle 4.8hp / 71cc engine
PRODUCT SPECS
Powered By Gas Power 4.96 HP Weight 24.91 lbs. Max Blade Size 9″ Max Cutting Depth 16″ MPN 967195701
Diamond Blade Cutting Depths
Blade Diameter | Max. Cutting Depth |
9" | 3" |
10" | 3.94" |
12" | 4" |
14" | 5" |
16" | 6" |
Diamond Blade Recommended RPMs
Blade Diameter | Recommended RPM | Max. RPM |
4" | 9072 | 15000 |
4- ½" | 8063 | 13300 |
5" | 7257 | 12000 |
6" | 6048 | 10185 |
7" | 5184 | 8730 |
8" | 4536 | 7640 |
9" | 4032 | 6790 |
10" | 3629 | 6115 |
12" | 3024 | 5095 |
12" High Speed | N/A | 6300 |
14" | 2592 | 4395 |
14" High Speed | N/A | 5400 |
16" | 2268 | 3820 |
16 High Speed | N/A | 4725 |
18" | 2016 | 3395 |
20 | 1814 | 3055 |
22 | 1649 | 2780 |
24" | 1512 | 2550 |
26 | 1396 | 2350 |
28" | 1296 | 2185 |
30 | 1210 | 2040 |
32" | 1134 | 1910 |
36" | 1008 | 1700 |
42" | 864 | 1455 |
48" | 756 | 1275 |
