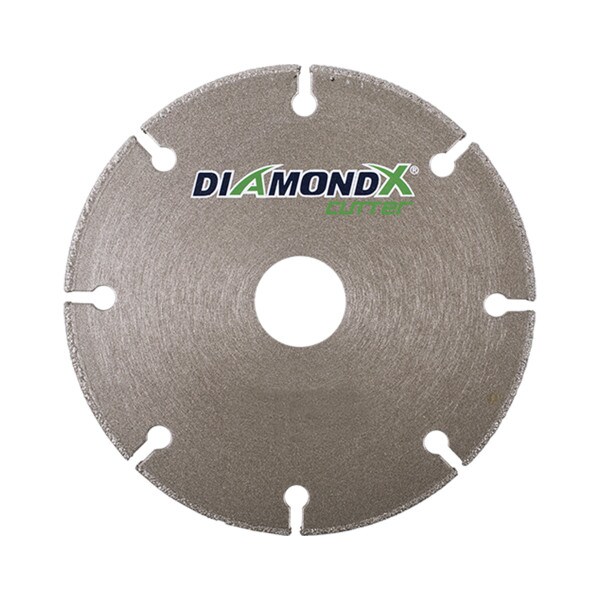

DiamondX 9" Do All Vacuum Brazed Premium Thin Cut Diamond Blade
The DiamondX Cutter is a thin diamond blade that replaces bonded abrasive blades. Designed for use on demanding metal applications, the Cutter will also cut various other materials including wood, plastics, composite materials, masonry, and ceramics.
For optimum results on steel and stainless steel, use on sheet/section material up to 3/8" thick and solid bar/bolts up to 3/4"
Diamond Blade Cutting Depths
Blade Diameter | Max. Cutting Depth |
9" | 3" |
10" | 3.94" |
12" | 4" |
14" | 5" |
16" | 6" |
Diamond Blade Recommended RPMs
Blade Diameter | Recommended RPM | Max. RPM |
4" | 9072 | 15000 |
4- ½" | 8063 | 13300 |
5" | 7257 | 12000 |
6" | 6048 | 10185 |
7" | 5184 | 8730 |
8" | 4536 | 7640 |
9" | 4032 | 6790 |
10" | 3629 | 6115 |
12" | 3024 | 5095 |
12" High Speed | N/A | 6300 |
14" | 2592 | 4395 |
14" High Speed | N/A | 5400 |
16" | 2268 | 3820 |
16 High Speed | N/A | 4725 |
18" | 2016 | 3395 |
20 | 1814 | 3055 |
22 | 1649 | 2780 |
24" | 1512 | 2550 |
26 | 1396 | 2350 |
28" | 1296 | 2185 |
30 | 1210 | 2040 |
32" | 1134 | 1910 |
36" | 1008 | 1700 |
42" | 864 | 1455 |
48" | 756 | 1275 |
