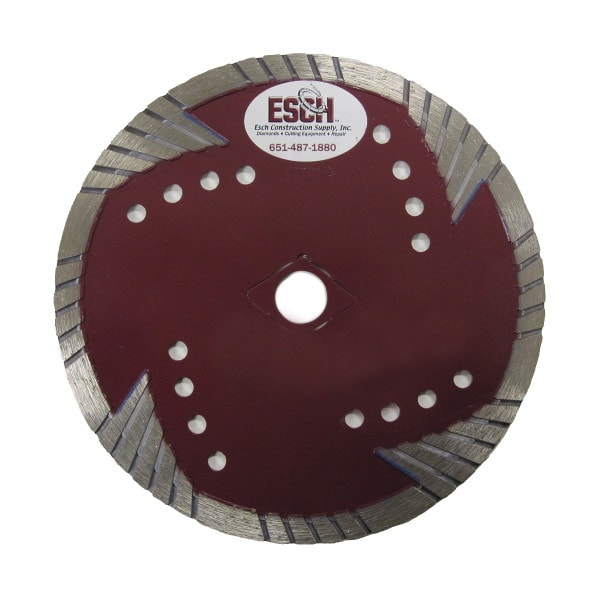

Esch Hurricane Super-Fast Tuckpointing Blade for Hard Materials
PRODUCT SPECS | |
---|---|
Diameter | 4", 4 1/2" 5", 6", 7" 8", 9" |
Arbor | 5/8-11" 7/8" |
Thickness | .080" .090" .095" |
Application | Tuckpointing:Hard Mortar |
• 5 Reasons the Metabo T13-125 is the Ultimate Hand-Held Grinder - Pair your small diameter blades with the best hand-held grinder for tuckpointing and surface preparation.
• Best Practices for Metabo Grinder Maintenance - Learn the safest and most efficient way to cut or grind with your Metabo hand-held grinder.
• Coach's Corner - Dust-Free Tuckpointing Shroud from Metabo - Watch how the Metabo Heavy-Duty Dust Shroud captures dust and debris when cutting & tuckpointing.
Diamond Blade Cutting Depths
Blade Diameter | Max. Cutting Depth |
9" | 3" |
10" | 3.94" |
12" | 4" |
14" | 5" |
16" | 6" |
Diamond Blade Recommended RPMs
Blade Diameter | Recommended RPM | Max. RPM |
4" | 9072 | 15000 |
4- ½" | 8063 | 13300 |
5" | 7257 | 12000 |
6" | 6048 | 10185 |
7" | 5184 | 8730 |
8" | 4536 | 7640 |
9" | 4032 | 6790 |
10" | 3629 | 6115 |
12" | 3024 | 5095 |
12" High Speed | N/A | 6300 |
14" | 2592 | 4395 |
14" High Speed | N/A | 5400 |
16" | 2268 | 3820 |
16 High Speed | N/A | 4725 |
18" | 2016 | 3395 |
20 | 1814 | 3055 |
22 | 1649 | 2780 |
24" | 1512 | 2550 |
26 | 1396 | 2350 |
28" | 1296 | 2185 |
30 | 1210 | 2040 |
32" | 1134 | 1910 |
36" | 1008 | 1700 |
42" | 864 | 1455 |
48" | 756 | 1275 |
