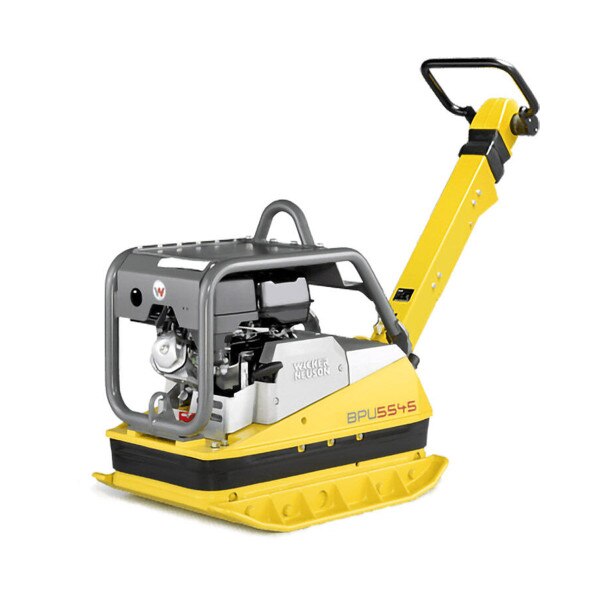

Wacker Neuson BPU5545A Reversible Vibratory Plate Compactor

Wacker Neuson BPU5545A Reversible Plate Compactor

Heavy-duty compaction with dependable Honda power.

The Wacker Neuson BPU5545A delivers strong compaction force with smooth forward and reverse travel, giving contractors the power and control needed for tough jobs like compacting backfill, frost, and sub-bases. Whether you're working on roadwork, parking lots, or prepping trenches, this plate compactor performs with speed, reliability, and operator comfort.

Built to perform in demanding conditions:

• 12,364 lbs of centrifugal force and up to 9,171 sq ft/hour surface coverage means high productivity on larger sites.
• 69 Hz vibration frequency is ideal for compacting mixed soils and even heavier interlocking pavers.
• Infinitely variable forward and reverse travel, including spot compaction, allows for easy maneuvering in tight spaces.

Designed for daily use:

• Innovative guide handle minimizes hand-arm vibration (4.9 ft/s²), making it safe and comfortable for extended use.
• Recoil-start Honda GX 390 engine provides reliable starting and a long service life.
• Low oil shutoff and a maintenance-free alternator reduce downtime and simplify upkeep.
• Safety cut-out protects the operator when reversing near walls or other obstructions.

Customizable width options:

The base plate measures 17.3 inches wide, with optional extension plates increasing the operating width to 23.6 inches for greater versatility.

Specs at a glance:

• Weight: 750 lbs

• Engine: Honda GX 390, recoil start

• Fuel Capacity: 1.6 gallons

• Compaction Force: 12,364 lbf

• Operating Width: 17.3" (23.6" with extensions)

• Travel Speed: Up to 88.6 ft/min

• Made in: Germany

• Warranty: 5 years

Tough, efficient, and built for serious compaction work—the Wacker Neuson BPU5545A is ready to take on your next job.
