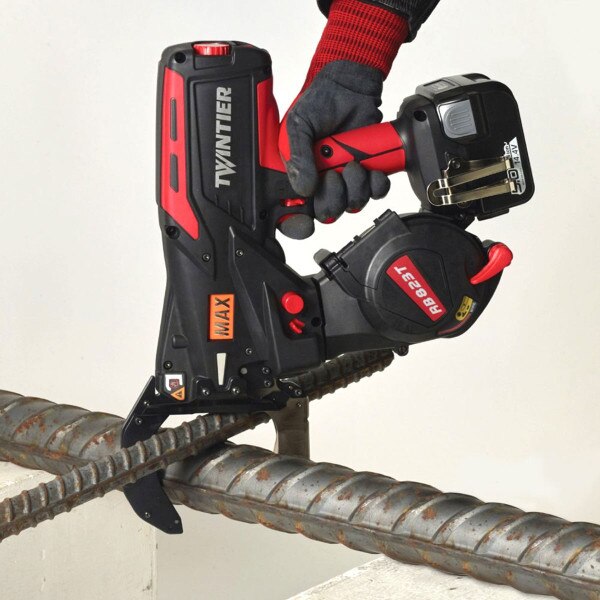

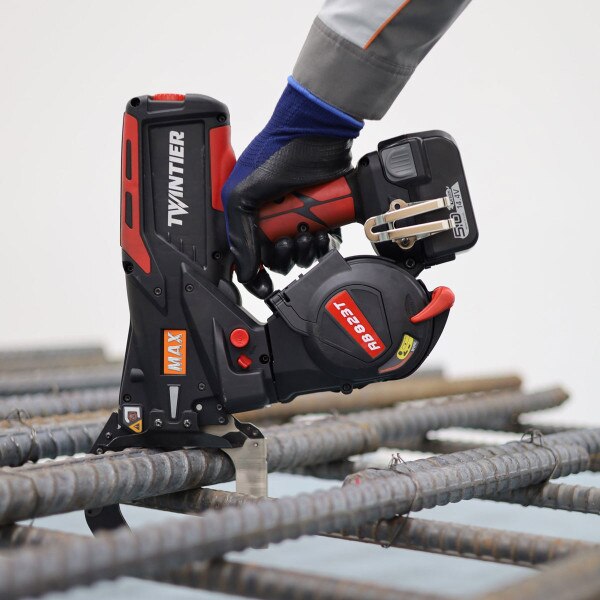

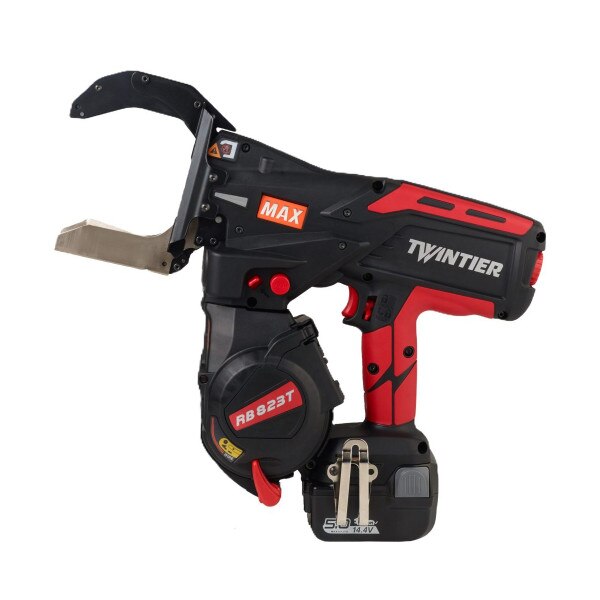

MAX USA RB823T X-Large Rebar Tying Tool
The TWINTIER® RB823T is the fastest solution for tying #7 x #7 to #14 x #14 (Or #18 x #8) rebar combinations, making it the largest capacity rebar tying tool on the market. TWINTIER® technology allows the RB823T to tie Approx.4,100 ties per charge, while delivering just the right amount of wire for greater productivity and cost savings. Compared to hand tying this tool can reduce the risk of musculoskeletal injuries. See chart below for all applicable combinations.
Applications
• Footing
• Caisson, Drill Shaft, Column
• Cell Phone Tower
• Water Treatment
• Binding Rebars/ Cables
Features
LARGEST JAW CAPACITY EVER
The largest jaw size of any battery powered rebar tying tool on the market. This tool makes ties on two pieces of rebar (Up to #18x#8 or #14x#14) at the same time.
FAST TYING
The RB823T tying speed is approximately 1/2 second for fast tying.
LOAD ASSIST MECHANISM
New wire loading system automates wire loading for tool.
EASY PULL TRIGGER
Reduced trigger effort is required, improving operational ergonomics.
Specifications | Details |
|---|---|
| Weight | 6.0 lbs |
| Dimensions | 12-3/8"(H) x 4-7/8"(W) x 15-1/8"(L) |
| Minimum Ties per Coil | 85 |
| Maximum Ties per Coil | 165 |
| Applicable Wire Product / GA | TW1061-T Series / 19Ga. |
| Applicable Rebar Size | #7 x #7 - #14 x #14 (Or #18 x #8)* *Varies by rebar manufacturer |
| Ties per Charge | 4100 |
| Tie Speed | Approx. 1/2 sec. |
| Battery Charge Time | Approx. 80 minutes full charge (approx. 60 minutes 80%) |
| Battery | JPL91450A |
| Charger | JC925A |
