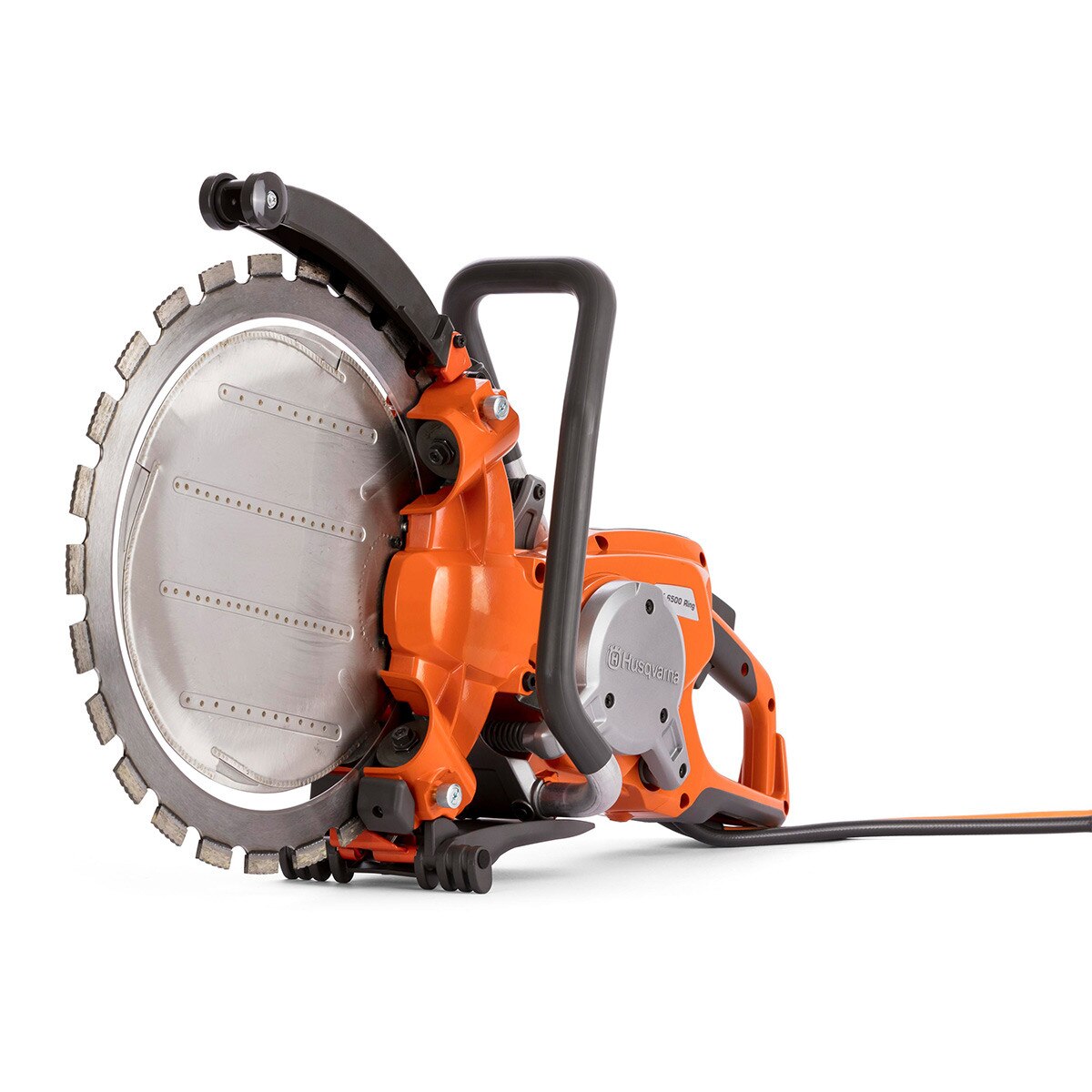

Husqvarna K7000 17" PRIME Ring Saw
Husqvarna K7000 17" PRIME Ring Saw is equipped with high-frequency PRIME™ technology, making it the most powerful electric ring cutter ever. The high power output, well-balanced body, and low vibration levels make this machine very efficient and easy to use. The PRIME™ product range enables you to combine the system that is most efficient for your business. The K 7000 can be used with either the PP 65 or the PP 220 as a power source. Expand the system as your needs develop.
PRODUCT SPECS | |
|---|---|
| Output Power | 2-4/7.4 (1.5-3/5.5) |
| Voltage | 480/230V |
| Weight (without blade) | 27 lbs |
| Cutting Depth Max | 13" |
| Blade Diameter Max | 17" |
| MPN | 970449901 |
Diamond Blade Cutting Depths
Blade Diameter | Max. Cutting Depth |
9" | 3" |
10" | 3.94" |
12" | 4" |
14" | 5" |
16" | 6" |
Diamond Blade Recommended RPMs
Blade Diameter | Recommended RPM | Max. RPM |
4" | 9072 | 15000 |
4- ½" | 8063 | 13300 |
5" | 7257 | 12000 |
6" | 6048 | 10185 |
7" | 5184 | 8730 |
8" | 4536 | 7640 |
9" | 4032 | 6790 |
10" | 3629 | 6115 |
12" | 3024 | 5095 |
12" High Speed | N/A | 6300 |
14" | 2592 | 4395 |
14" High Speed | N/A | 5400 |
16" | 2268 | 3820 |
16 High Speed | N/A | 4725 |
18" | 2016 | 3395 |
20 | 1814 | 3055 |
22 | 1649 | 2780 |
24" | 1512 | 2550 |
26 | 1396 | 2350 |
28" | 1296 | 2185 |
30 | 1210 | 2040 |
32" | 1134 | 1910 |
36" | 1008 | 1700 |
42" | 864 | 1455 |
48" | 756 | 1275 |
