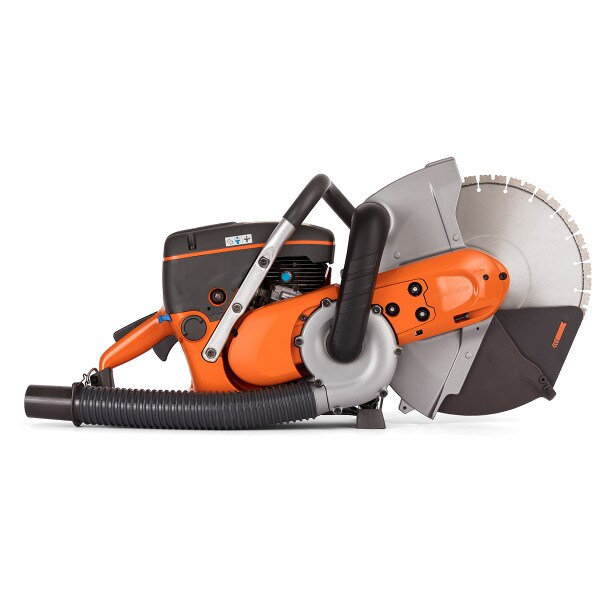

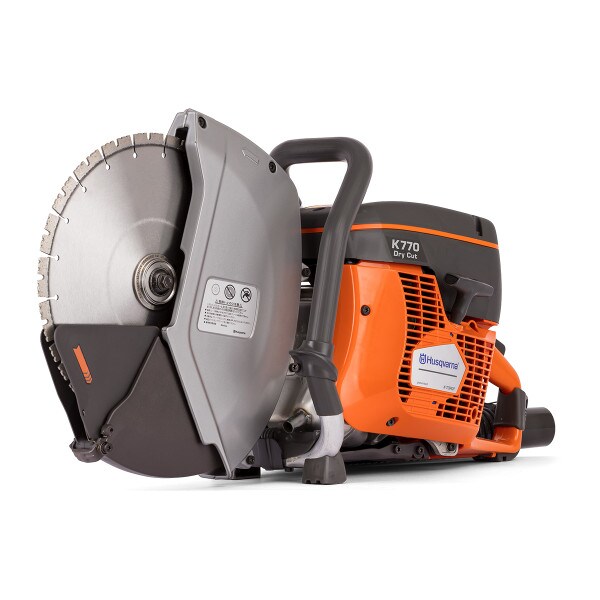

Husqvarna K770 Vac 12" Dry-Cut Cut-Off Saw

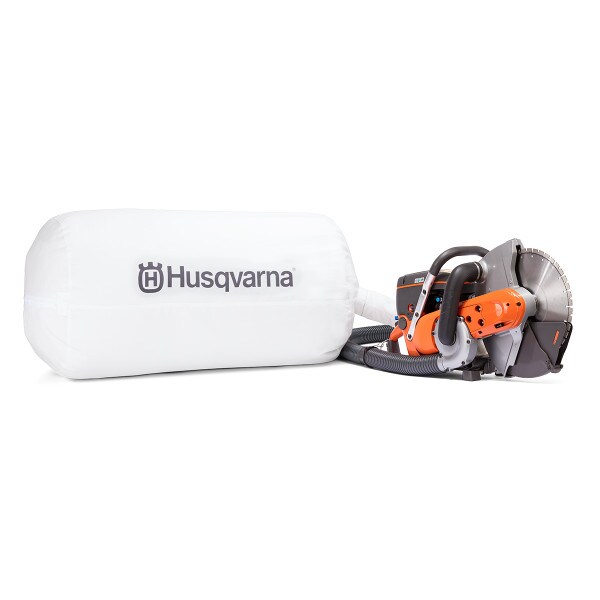

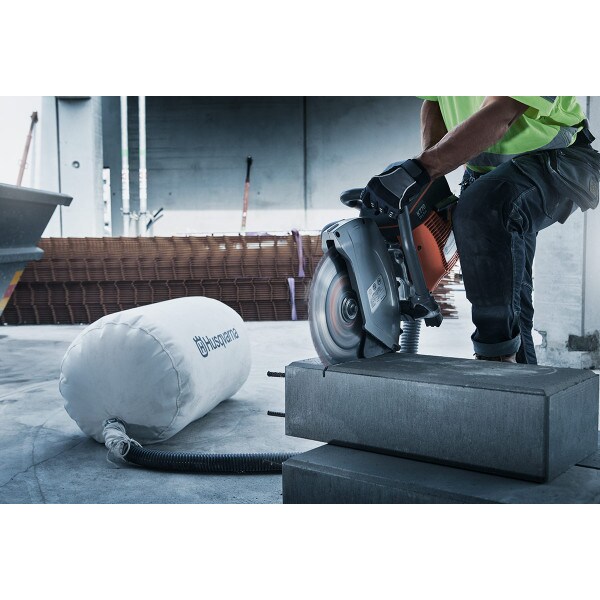

Husqvarna K 770 Vac Dry-Cut Cut-Off Concrete Saw improves upon the standard K 770 with a major improvement - integrated dust extraction. Connect your Husqvarna S 26 vacuum to the 2" port to effectively dry cut dust-free. The K 770 Vac operates with a 12" blade and a unique 60mm flange, allowing for a similar cutting depth as a 14" blade.
Features:
- Superior power-to-weight ratio while being light, compact, and powerful
- Equipped with a semi-automatic SmartTension system that allows for optimal power transmission, minimum wear, and maximum belt life
- 2" hose is easily connected to an external dust extractor, such as the Husqvarna S26 Dust Extraction Vacuum
- Strong poly-V belt with maintenance-free DuraStarter and new efficient Active Air Filtration system ensures long usage intervals
- The unique design of the carburetor, cylinder, and digital ignition system, together with the air purge and decompression valve, ensure an easy start
- Optimized engine performance through efficient cylinder design, digital ignition system, and X-Torq engine technology
- Works great for many cutting applications such as curbstones and pavers in landscaping, metal/pipes in installation work, concrete in buildings as well as roadwork applications with the trolley accessory
PRODUCT SPECS | |
|---|---|
| Cutting Depth Max | 4.8" |
| Blade Diameter Max | 12" |
| Output Power | 5 HP |
| Dimensions | 28.6" x 8.7" x 16.1" |
| Weight | 24.25 lbs |
| Sound Power Level | 115 dB |
| MPN | 967860701 |
Diamond Blade Cutting Depths
Blade Diameter | Max. Cutting Depth |
9" | 3" |
10" | 3.94" |
12" | 4" |
14" | 5" |
16" | 6" |
Diamond Blade Recommended RPMs
Blade Diameter | Recommended RPM | Max. RPM |
4" | 9072 | 15000 |
4- ½" | 8063 | 13300 |
5" | 7257 | 12000 |
6" | 6048 | 10185 |
7" | 5184 | 8730 |
8" | 4536 | 7640 |
9" | 4032 | 6790 |
10" | 3629 | 6115 |
12" | 3024 | 5095 |
12" High Speed | N/A | 6300 |
14" | 2592 | 4395 |
14" High Speed | N/A | 5400 |
16" | 2268 | 3820 |
16 High Speed | N/A | 4725 |
18" | 2016 | 3395 |
20 | 1814 | 3055 |
22 | 1649 | 2780 |
24" | 1512 | 2550 |
26 | 1396 | 2350 |
28" | 1296 | 2185 |
30 | 1210 | 2040 |
32" | 1134 | 1910 |
36" | 1008 | 1700 |
42" | 864 | 1455 |
48" | 756 | 1275 |
