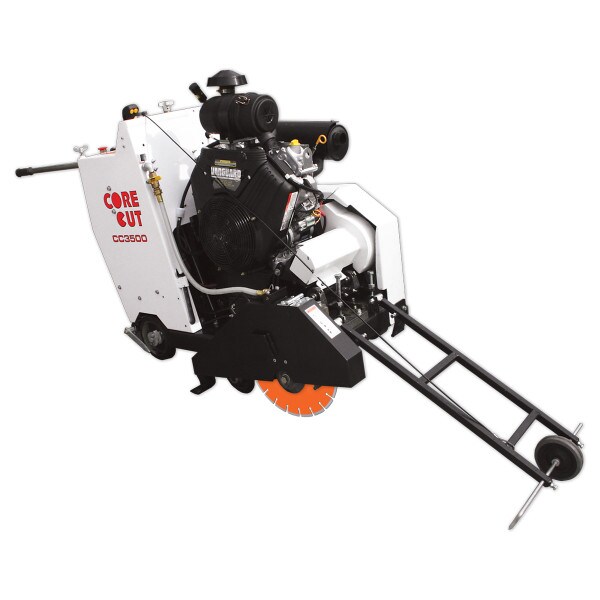

Diamond Products CC3500 20" Electric Walk-Behind Saw - 20HP, 460V, 3PH
CC3500 Walk-Behind Concrete Saw
The CC3500 Walk-Behind Saw is a robust, mid-to-heavy-duty saw designed for professionals tackling demanding concrete and asphalt cutting tasks. With powerful engine options and durable construction, it's ideal for roadwork, utility trenching, and large slab projects.
Key Features
- Powerful Performance: Jack shaft design delivers full engine power to the blade, providing 30% more torque on gas models.
- Versatile Cutting Capacity: Accommodates blade sizes from 14" to 30", achieving depths up to 12-3/8".
- User-Friendly Operation: Self-propelled drive and electro-hydraulic blade raise/lower system for smooth handling and precise cuts.
- Compact Design: Fits through standard 30" door frames, making it suitable for a variety of job sites.
- Durable Construction: Built with the strongest frame in its class to withstand tough job site conditions.
Specifications
- Maximum Depth of Cut with 20” Blade: 7-3/8"
- Blade Shaft Diameter: 1-3/4"
- Arbor Size: 1” with drive pin
- Blade Shaft Drive: 6-belt system
- Blade Mounting: Right or left side
- Blade Raise/Lower: Electro-hydraulic pump
- Transmission: Eaton Model 10
- Drive Speed: 0–200 ft/min
- Air Filter: 4-stage
- Fuel Capacity (Gas Models): 6 gallons
Specs | |
|---|---|
| Max Depth of Cut (20” Blade) | 7-3/8" |
| Blade Shaft Diameter | 1-3/4" |
| Arbor Size | 1" w/ drive pin |
| Blade Shaft Drive | 6-belt system |
| Blade Mounting | Right or left |
| Blade Raise/Lower | Electro-hydraulic pump |
| Transmission | Eaton Model 10 |
| Drive Speed | 0–200 ft/min |
| Air Filter | 4-stage |
| Fuel Capacity (Gas Models) | 6 gallons |
