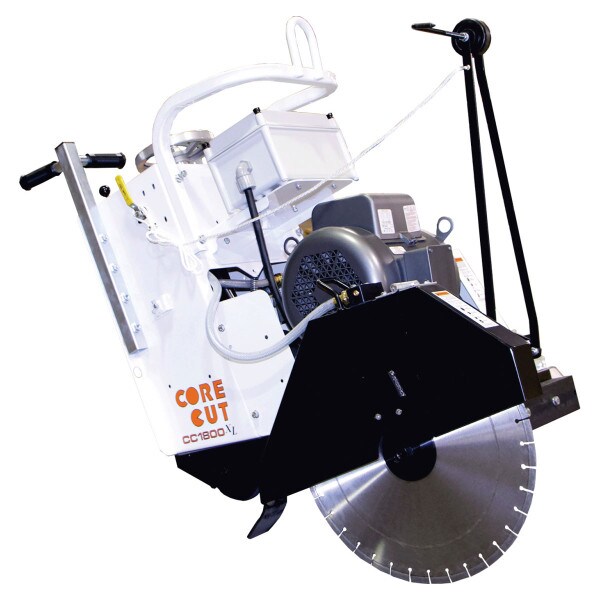

Diamond Products Core Cut CC1800XL 20" Walk-Behind Saw - 10HP, 460V, 3PH
CC1800XL 20" Walk-Behind Saw Features & Benefits:
• Electric start option on Honda and Briggs Vanguard models
• Pull start backup on Briggs Vanguard models
• Push or self propelled drive
• Easy access to battery with heavy duty isolator switch to prevent battery drain
• Screw feed raise and lower
• Left or right side sawing
• Lifting hook standard on all models
• Self aligning blade shaft bearings
CC1800XL 20" Walk-Behind Saw 460V, 3Ph, 20” Blade Guard, 10Hp, Self-Propelled, Electric Start W/ Baldor Engine. Shop With Esch Construction Supply For Top-Quality Tools And Equipment, Backed By Expert Knowledge And Exceptional Customer Support.
Specifications
| Item | Details |
|---|---|
| Model # | CC1800XL |
| Motor | Baldor® |
| Motor Power | 10 HP, 460V-3PH |
| Part # 20” Guard | 5800693B |
| Maximum depth of cut with 20” blade | 7-5/8” |
| Blade shaft RPM | 2,600 |
| Blade shaft diameter | 1-1/4” |
| Arbor Size | 1” w/drive pin |
| Blade shaft drive | 3 belt for 11.7HP, 4 belt other models |
| Blade mounting | Right or Left |
| Transmission (self propelled) | Eaton Model 6 |
| Drive Speed | 0-80 feet/min |
| Wheel Dimensions | 5” x 1-1/2” x 3/4” (Front) 6” x 1-1/2” x 5/8” (Back) |
