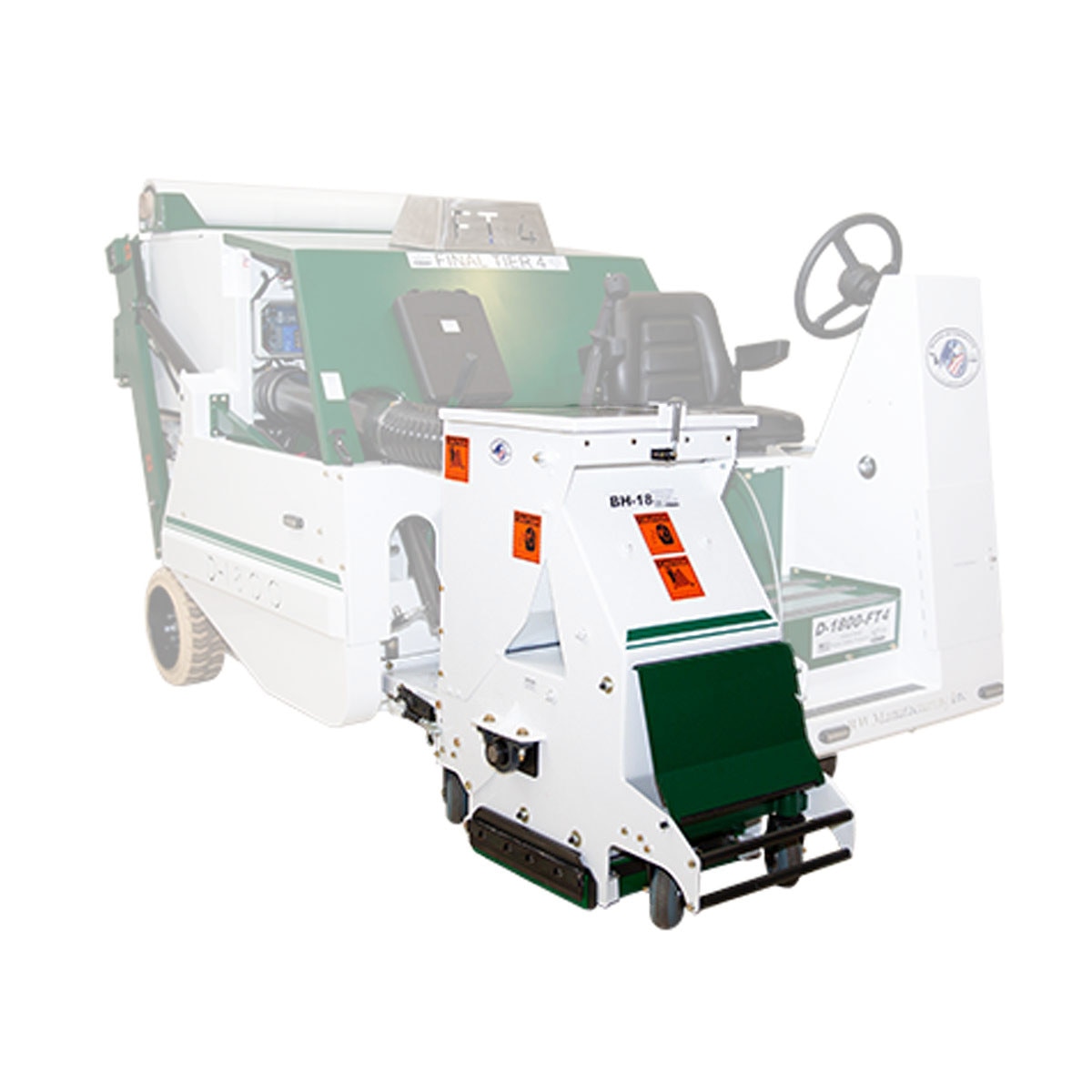

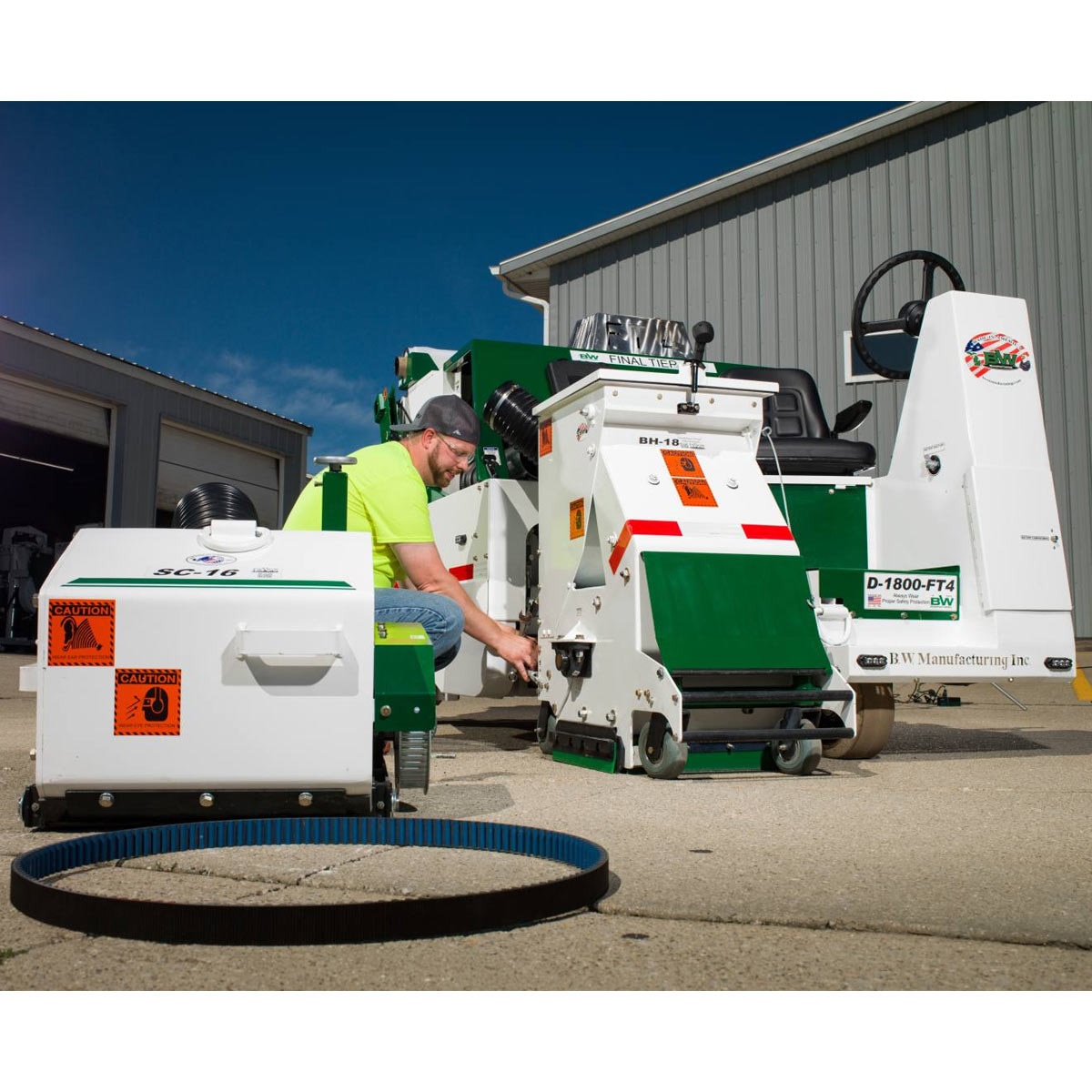

BW Manufacturing BH-18 Shotblasting Head Attachment for D-1800-FT4

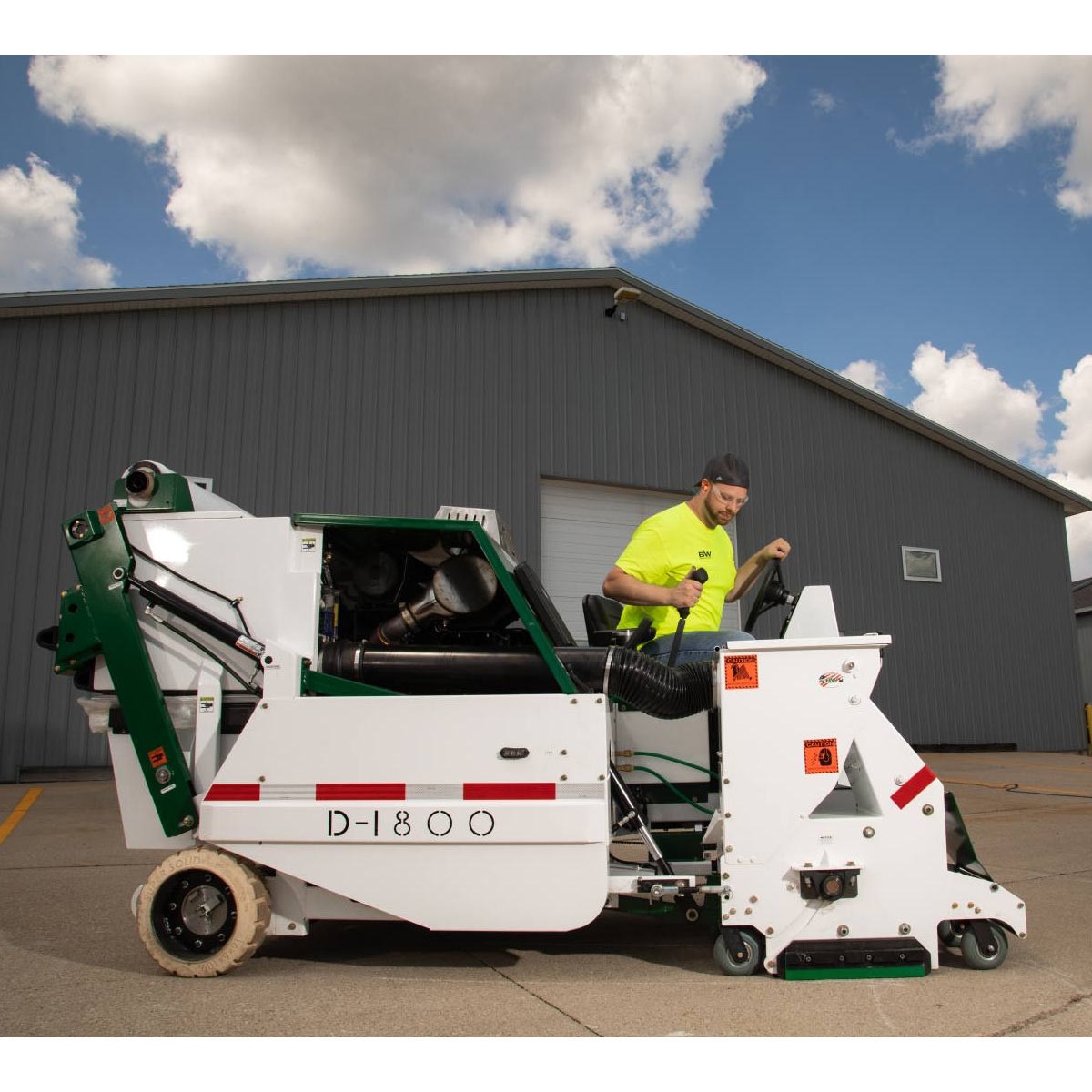

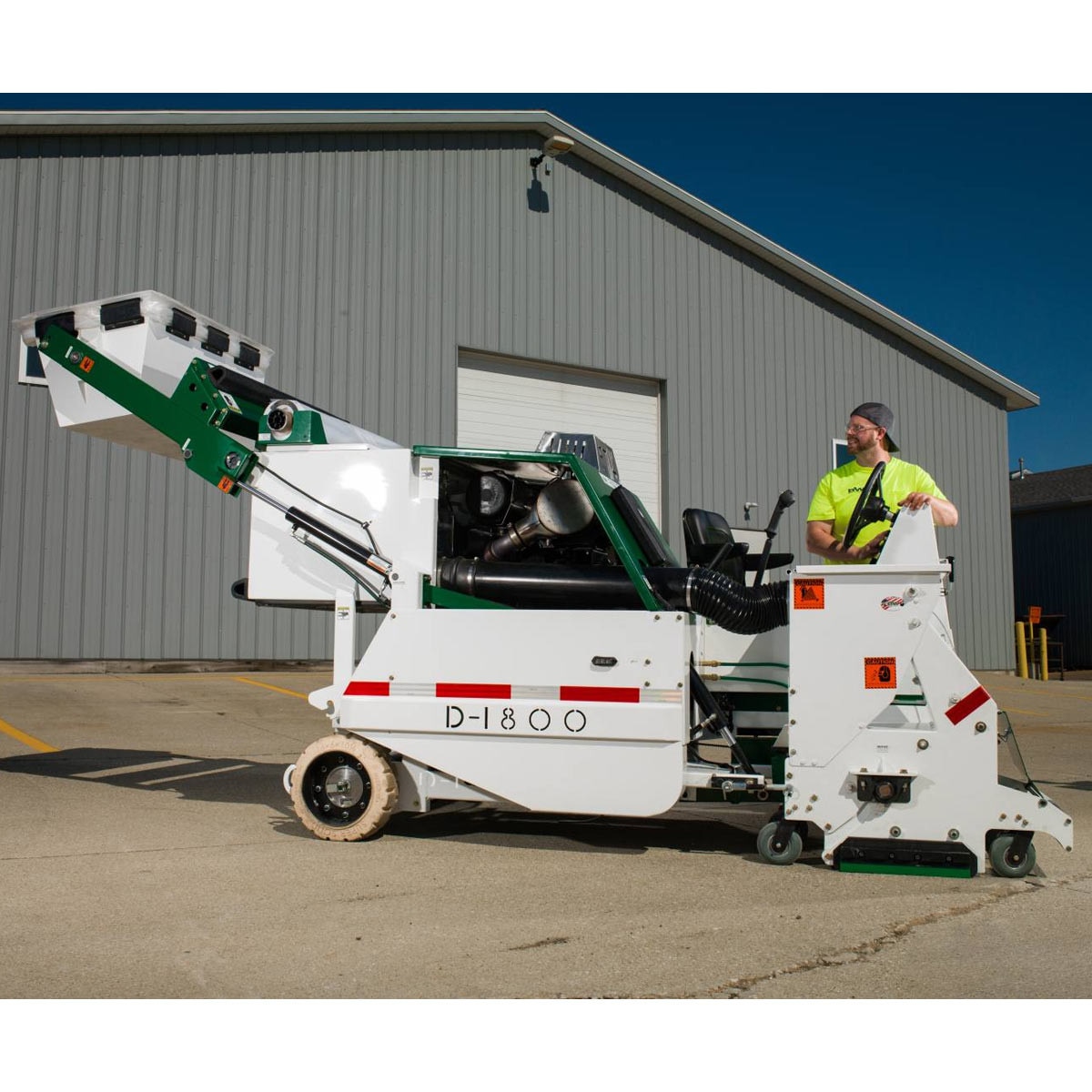

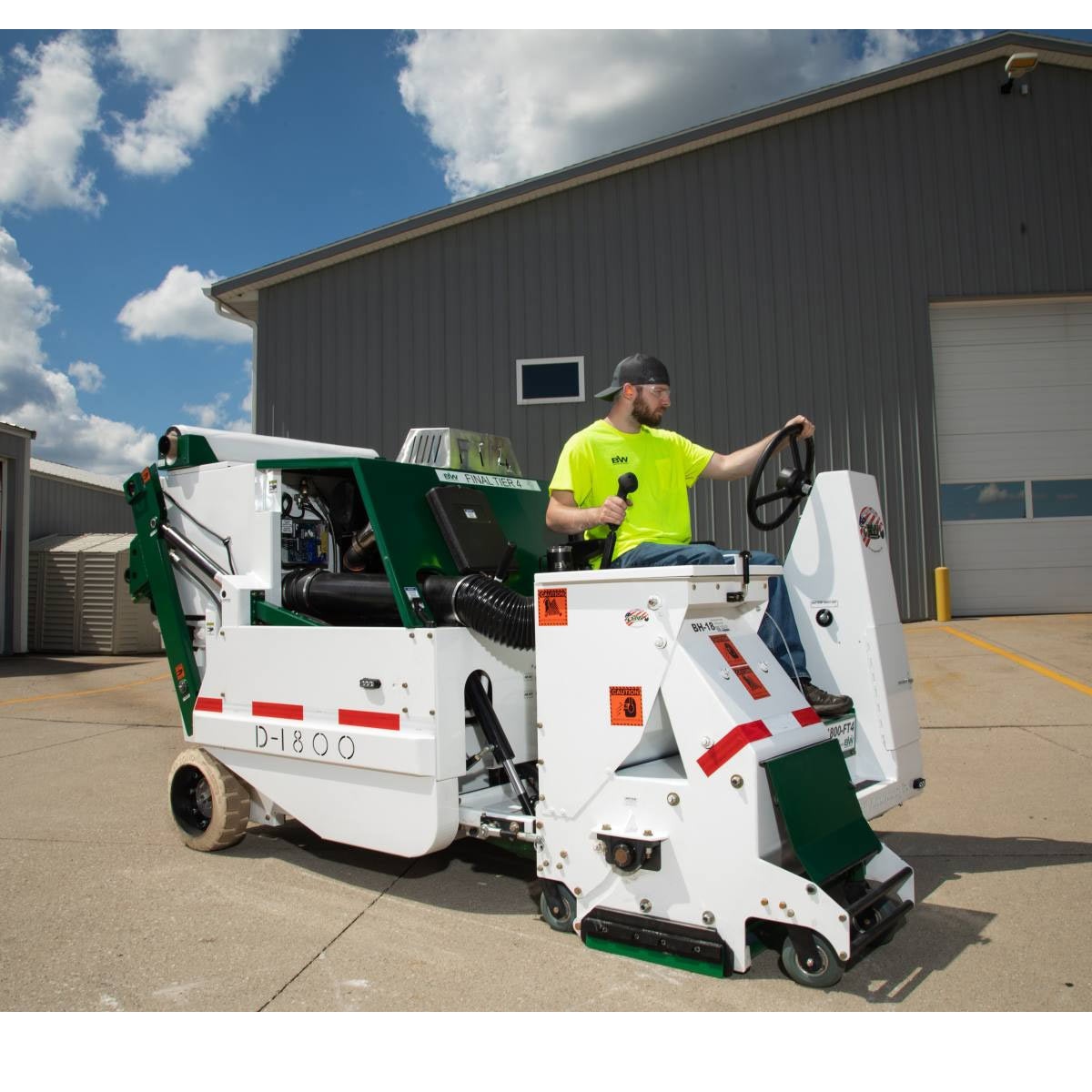

BW Manufacturing D-1800 – Advanced Surface Preparation Technology
BW Manufacturing introduces the D-1800, the latest in state-of-the-art surface preparation technology. Designed in response to contractors’ demands, the D-1800 solves the messy, time-consuming issue of dust removal with a hydraulic dump box, allowing operators to dump up to 55 gallons of material in seconds.
Enhanced Blast Head for Increased Production
The newly designed BH-18 Blast Head delivers superior performance, featuring the same feathered blast pattern as the BH-16 while increasing production with a 2-inch wider blasting path. Fully replaceable inner liners extend housing life, and cushioned swivel casters improve maneuverability on flat surfaces. Additionally, upgraded seals, floater plates, and a shot separator system enhance output while reducing shot consumption.
Powerful Chassis Upgrades
The D-1800 boasts a planetary gear drive, delivering greater low-end torque and faster drive speeds for improved efficiency. Operators also benefit from a newly formatted control system and optimized seating position, providing a better view of both front and rear attachments.
Improved Maintenance & Serviceability
A new tilted hood design allows for easier maintenance access, while internal advancements help decrease service intervals and increase overall production.
With these cutting-edge features, the D-1800 sets a new standard in surface preparation, offering greater efficiency, durability, and ease of use.
Applications
• Industrial Floors
• Bridge Decks
• Airport Runways & Hangers
• Parking Decks
• Steel Decking
• Highways
Chassis Specifications
| Interchangeable Heads | Shotblast Head Scarifier Head Diamond Grinder/ Polisher Head |
| Tires | Non-Marking |
| L x W x H | 115" x 57" x 60" |
| Weight | 4480 lbs |
| Engine | John Deere Final Tier-4 Diesel 73hp |
| Drive | Hydrostatic |
| Compressor | Liquid Cooler 13 cfm |
| Vacuum | 2280 cfm |
| Steering | Power |
| Collector Capacity | 6.5 cubic ft |
| Drive Wheel Width | 50" |
| Wheel Base | 78" |
Shot Blast Specifications
| Production Capacity | 3000-7000 Square Feet |
| Cleaning Path | 18" |
| Width with Attachment | 56" |
| Weight | 760 lbs |
| Aisle Width Minimum | 78" (blastable width) |
