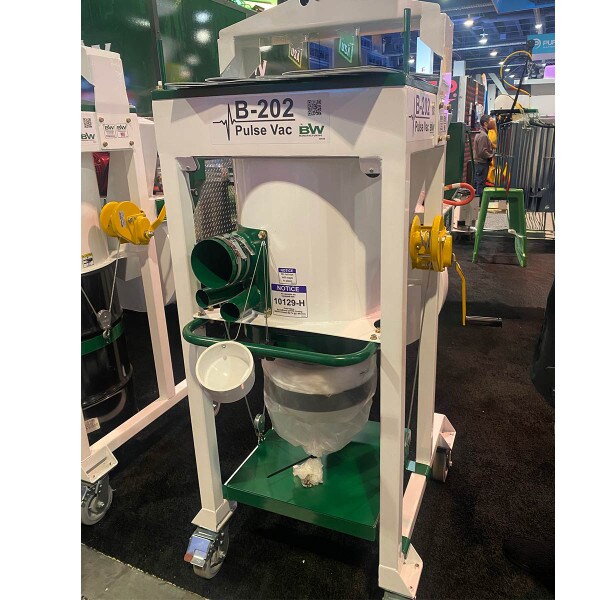

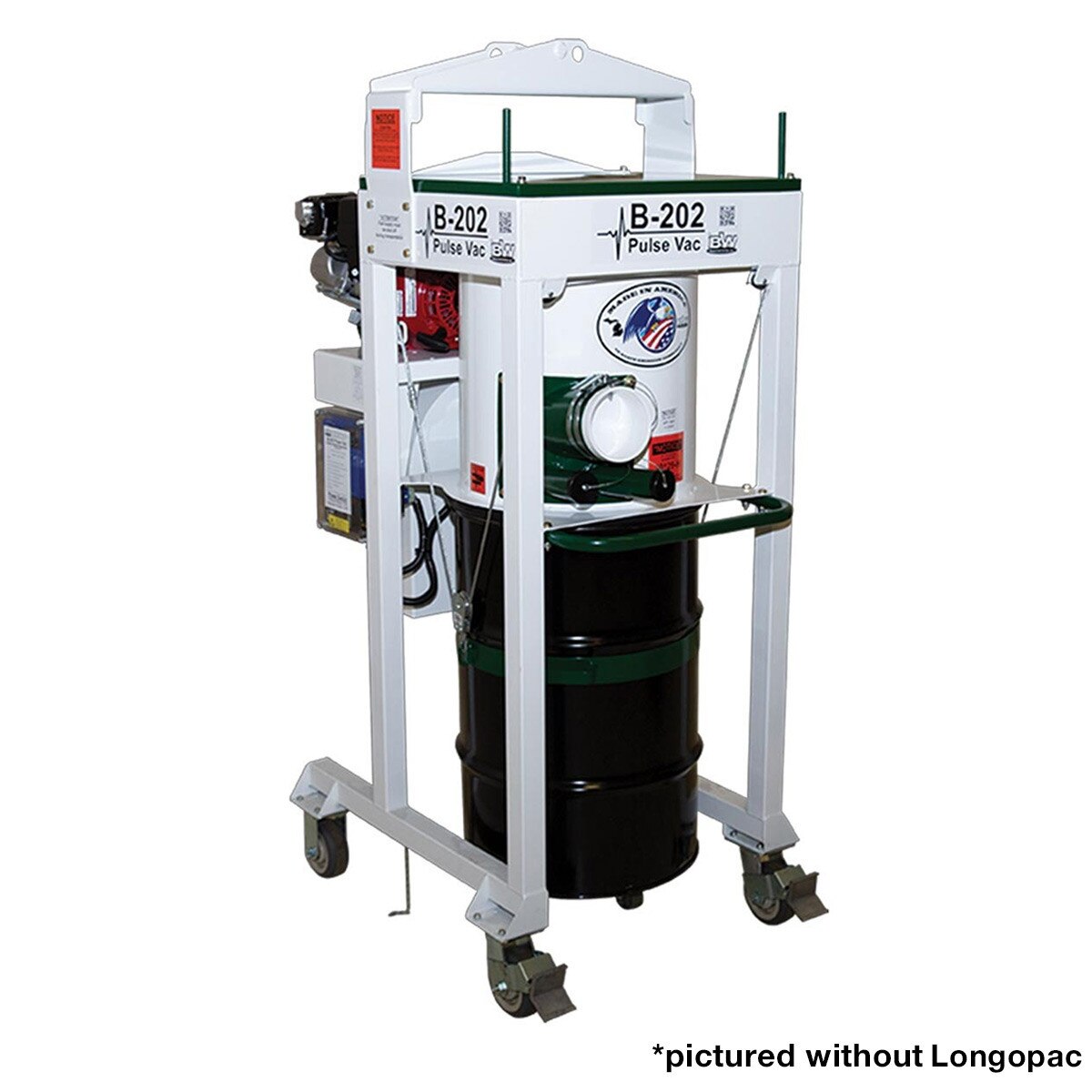

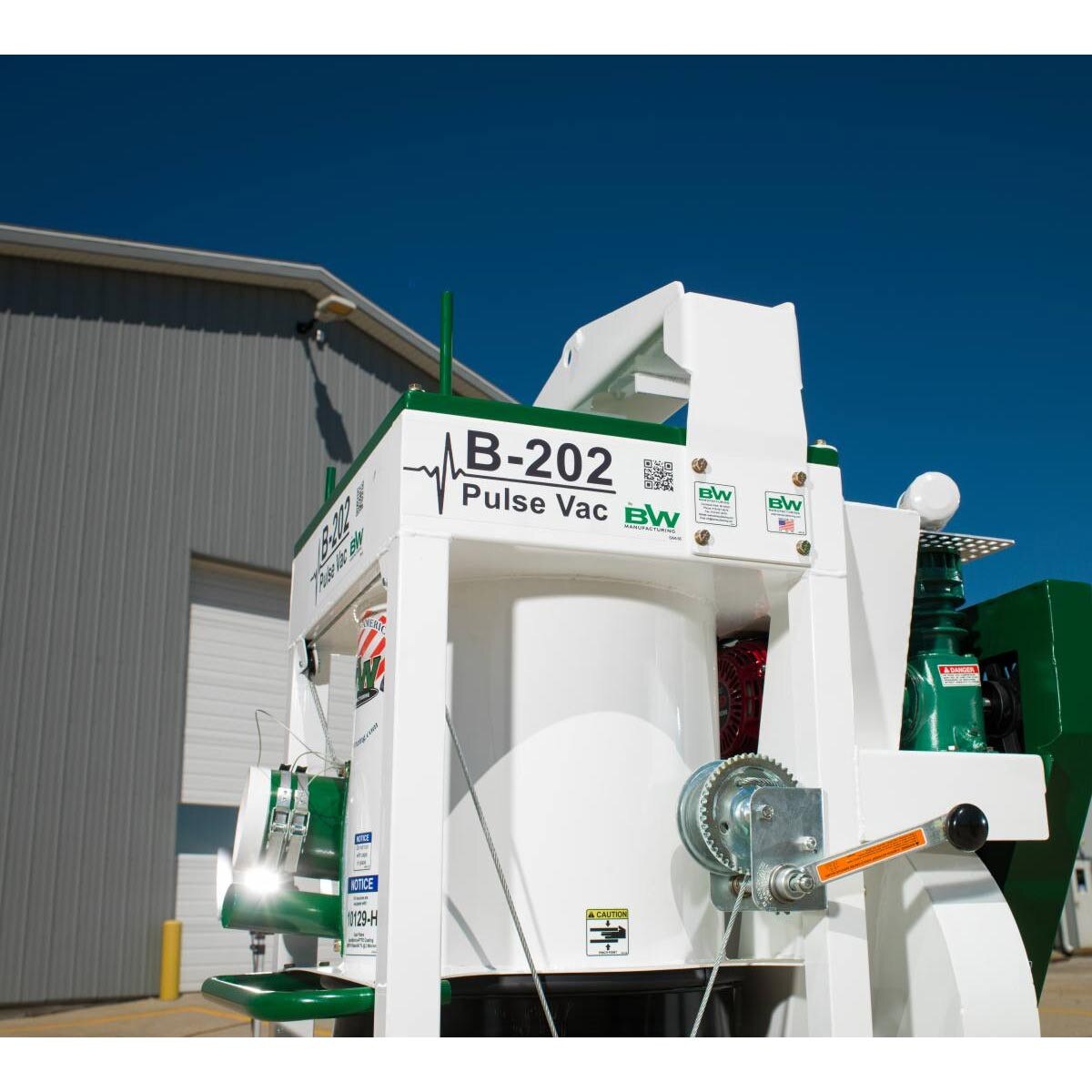

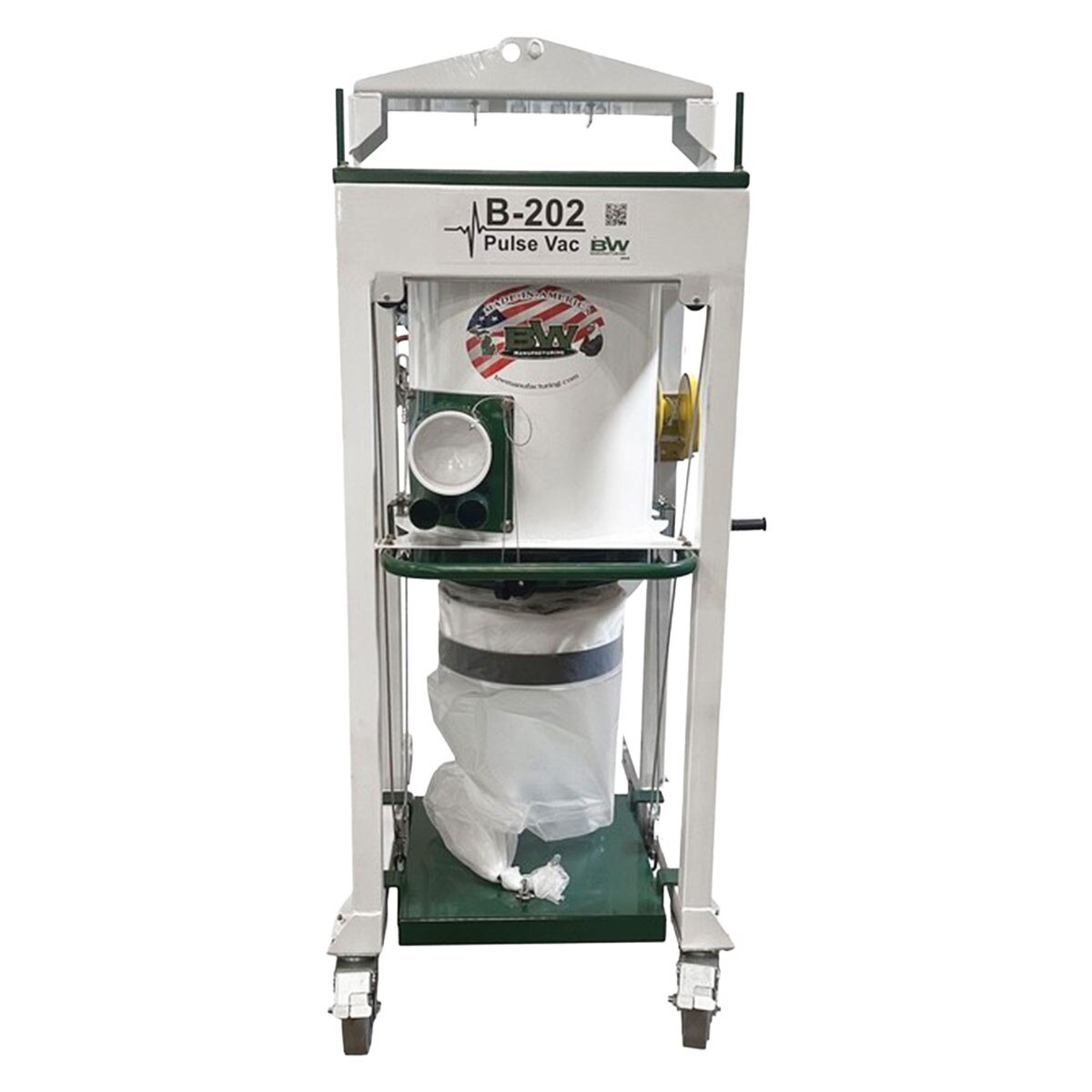

BW Manufacturing B-202 Pulse Vac
B-202 Pulse Vac – High-Capacity Dust Containment & Continuous Vacuum
The B-202 Pulse Vac is engineered for contractors who require high-volume dust containment, automatic filter pulsation, and a high CFM.
Versatile Inlet Ports & Motor Options

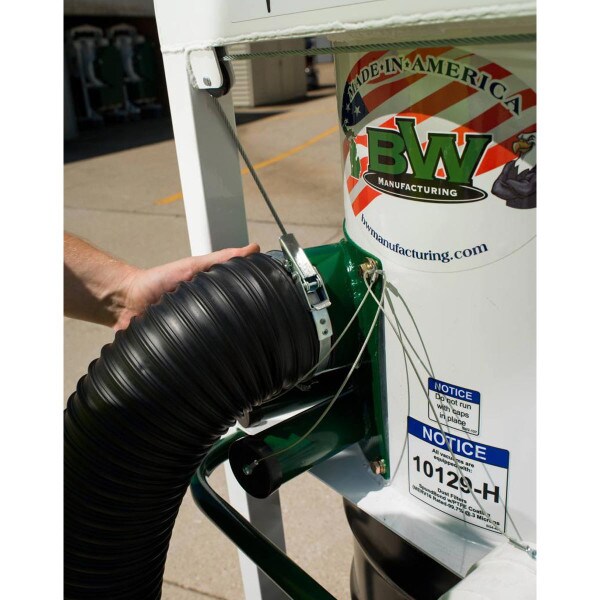

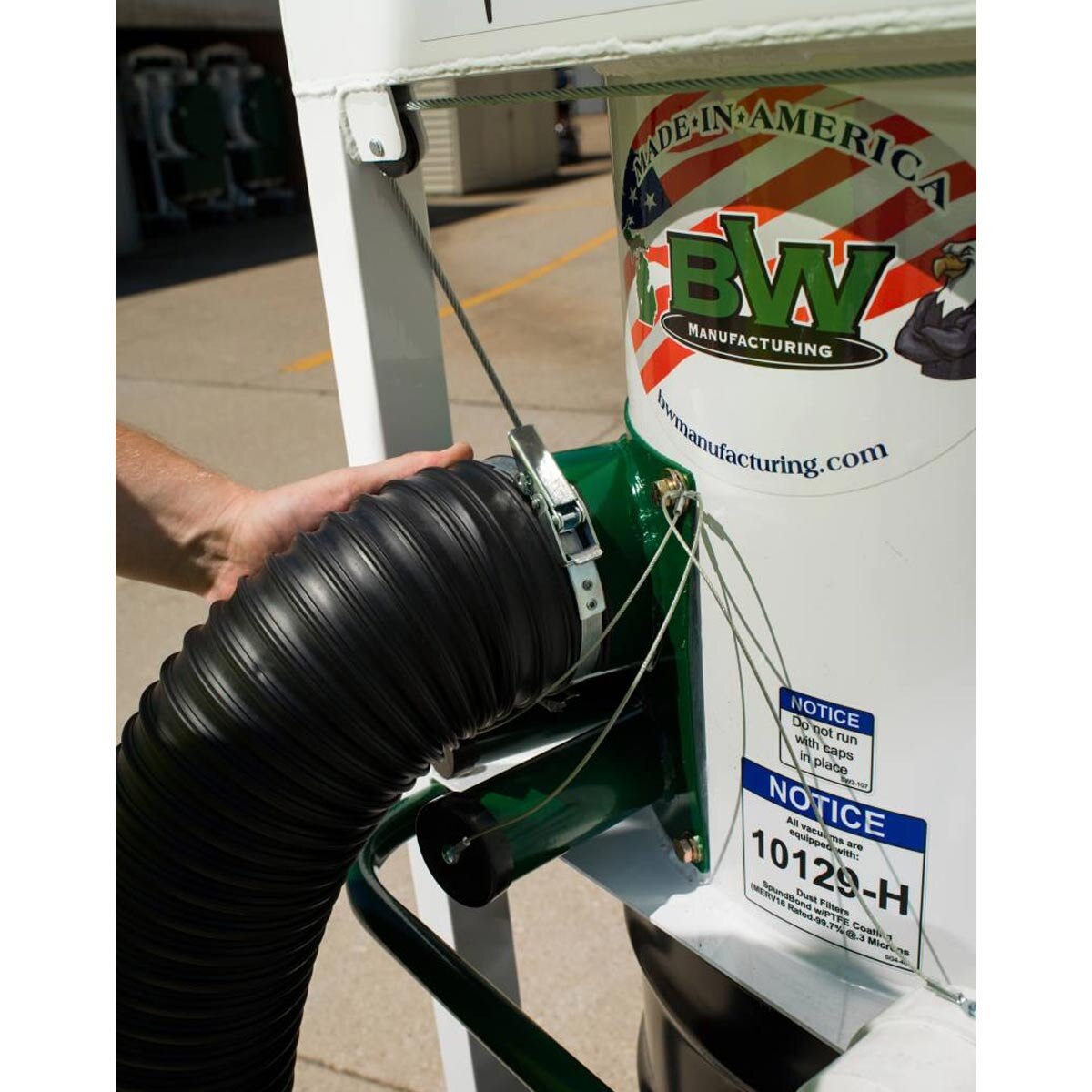

The B-202 comes equipped with one 5-inch and two 2-inch inlet ports, allowing for easy connection to various equipment. Choose between motor options: the 5.5HP Honda gas, propane, or natural gas offering flexibility to suit your power needs.
Advanced Pulsation Control for Maximum Efficiency

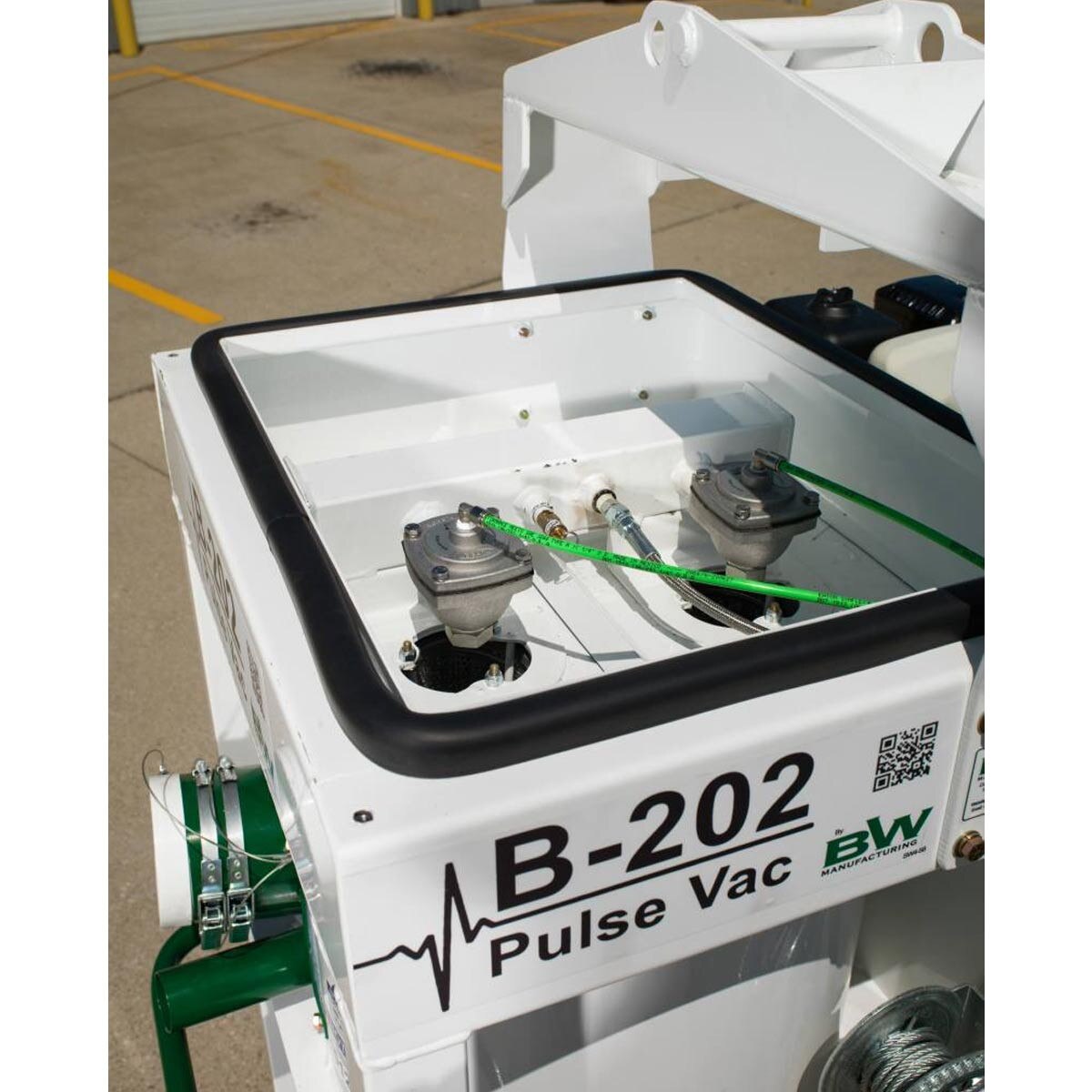

Field-tested and proven, the pulsation control system ensures maximum productivity by automatically pulsing the filters clean every 10-15 seconds using a reversed charge of compressed air. This feature maintains continuous vacuum power and reduces downtime.
Durable, Adaptable, and Low Maintenance
With reduced filter cleaning labor and adaptability to all shrouded equipment, the B-202 Pulse Vac is built to withstand demanding work environments. Its rugged construction and efficient dust containment make it the ideal choice for your jobsite needs.
Key Features & Specifications:
• Built-in Compressed Air Filter Pulsation
• MERV16 Rated – 99.7% efficiency at .3 microns

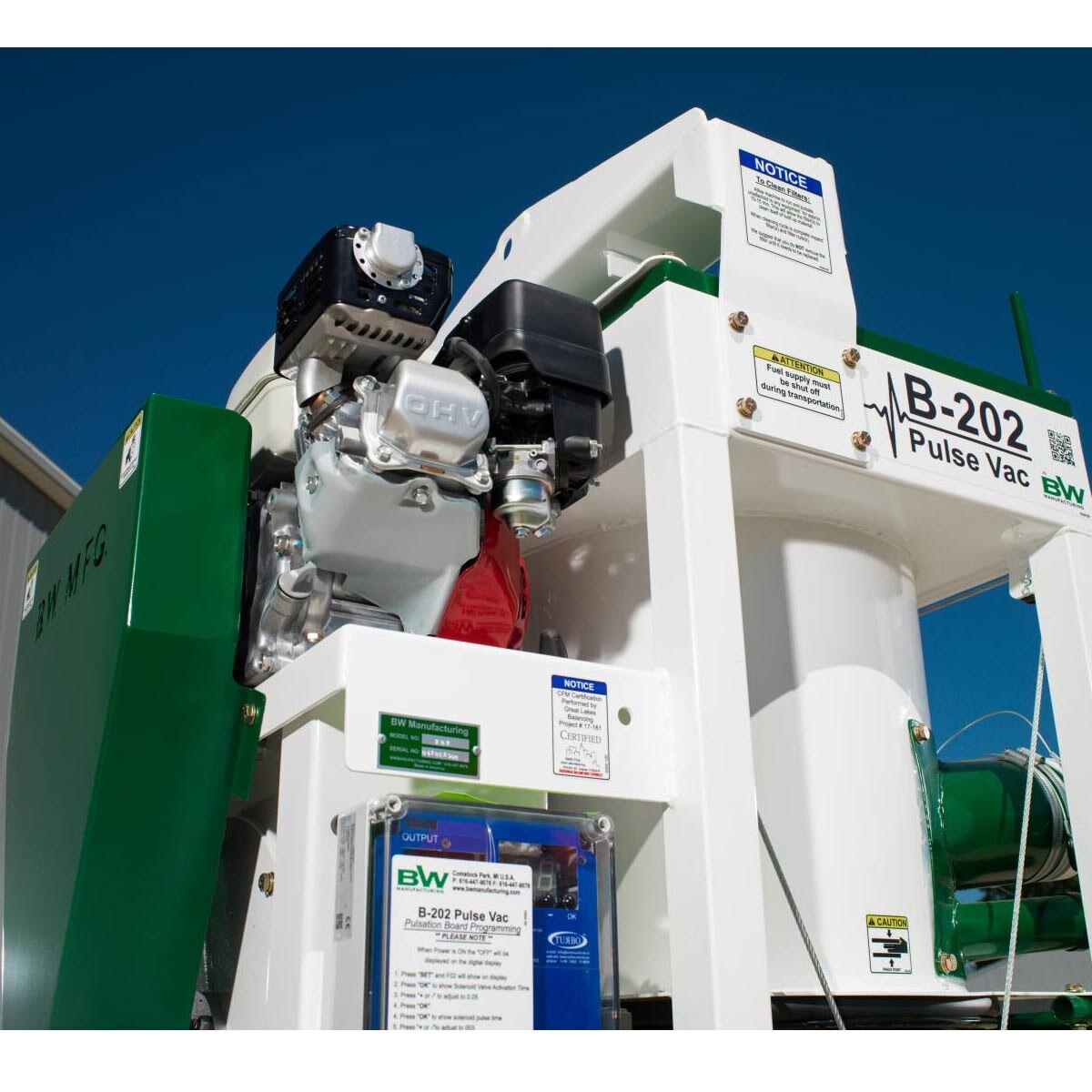

• 6.5HP Honda Gas Engine
• 18” H2O Lift (sealed)
• 1105 CFM @ 5” (Certified under Project #17-161)
• Heavy Duty Casters
The B-202 Pulse Vac combines high performance, convenience, and durability to meet all your dust containment needs on the job.
| Construction | Powder Coated Steel |
| Vacuum Hose | 5" x 15' Wire Reinforced 2 – 2″ x 15′ (Optional) |
| Motor Options | 5.5hp Propane 5.5hp Natural Gas |
| Compressor: | 2.5 cfm Air Cooled – Oil Filled |
| L x W x H | 34-½" x 28" x 59" |
| Weight | 375 lbs |
| Wheels | 2 @ 5″ Rubber Stationary Casters 2 @ 5″ Rubber Swivel Casters |
| Primary Filtration (Specially Designed Pleated Cartridge): | #10129-H Spun Bond W/PTFE Coating (Standard Filter in all BW Manufacturing equipment): SpunBond P.T.F.E., 70 pleats, 31 Sq. Ft media. Efficiency of 99.7% @ .03 Microns (Minimum Efficiency Rating Value (MERV) 16 Rating – Out of the box) #10129-B Cellulose Paper/Polyester Blend Filter (Optional Replacement Filter) 80/20 Blend, 120 pleats, 53 Sq. Ft media. Efficiency of 99.9% @ 1 Micron with a seasoned ( caked ) filter. |
Vacuum Chart
Model | Port Size | CFM | Inches of Lift |
B-202 | Sealed | 0 | 18.0 |
B-202 | 1 @ 5" | 1105 (Certified_ | 3.0 |
B-202 | 2 @ 2: | 295 Each Port | 5.0 |
All testing has been completed in a controlled environment at BW Manufacturing by Great Lakes Balancing using a Shortridge Airdata Multimeter – Model# ADM 860 on November 28th, 2017 and measured at the neck of each vacuum.
These figures should be used as a reference only.
