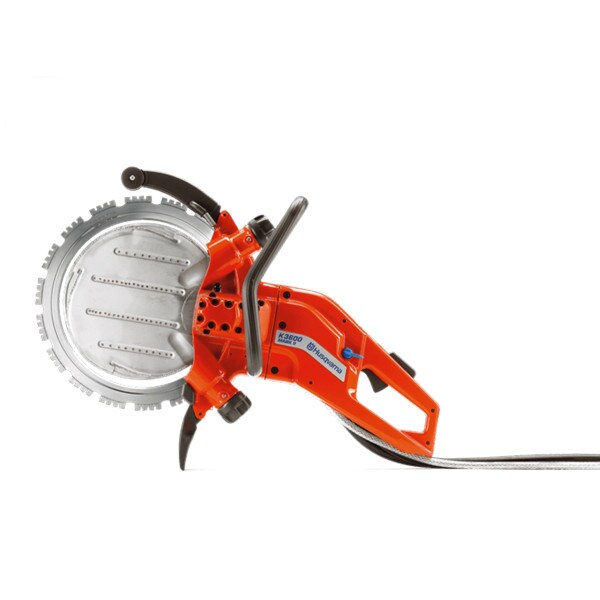

Husqvarna K3600 Mk II Hydraulic Ring Saw
The eccentric rim drive system of hydraulic power cutter K 3600 MK II provides a 10" cutting depth with a 14" blade. It's suitable for a wide variety of applications, such as correcting door and window openings and cutting pipie in installation jobs. It's ideal for working indoors due to no exhaust fumes and low noise levels.
| SPECS | |
|---|---|
| Max Blade Diameter | 14" |
| Max Cutting Depth | 10.6" |
| Peripheral Speed max | 10800 fpm |
| Output Power | 5.8hp |
| Hydraulic Pressure Max | 2176 psi |
| Weight | 18.3 lbs |
Diamond Blade Cutting Depths
Blade Diameter | Max. Cutting Depth |
9" | 3" |
10" | 3.94" |
12" | 4" |
14" | 5" |
16" | 6" |
Diamond Blade Recommended RPMs
Blade Diameter | Recommended RPM | Max. RPM |
4" | 9072 | 15000 |
4- ½" | 8063 | 13300 |
5" | 7257 | 12000 |
6" | 6048 | 10185 |
7" | 5184 | 8730 |
8" | 4536 | 7640 |
9" | 4032 | 6790 |
10" | 3629 | 6115 |
12" | 3024 | 5095 |
12" High Speed | N/A | 6300 |
14" | 2592 | 4395 |
14" High Speed | N/A | 5400 |
16" | 2268 | 3820 |
16 High Speed | N/A | 4725 |
18" | 2016 | 3395 |
20 | 1814 | 3055 |
22 | 1649 | 2780 |
24" | 1512 | 2550 |
26 | 1396 | 2350 |
28" | 1296 | 2185 |
30 | 1210 | 2040 |
32" | 1134 | 1910 |
36" | 1008 | 1700 |
42" | 864 | 1455 |
48" | 756 | 1275 |
