Stihl TSA 500 14" Battery-Powered Cut-Off Saw (Bare Tool Only)
STIHL TSA 500 Battery Powered Cut-Off Saw
The STIHL TSA 500 Battery Powered Cut-Off Saw delivers professional 14" cutting performance without the drawbacks of gas. Built for contractors cutting concrete, steel, pipe, masonry, and more, this battery cut-off machine gives crews strong cutting power with lower noise, no fuel mixing, and zero exhaust emissions.
Key Benefits

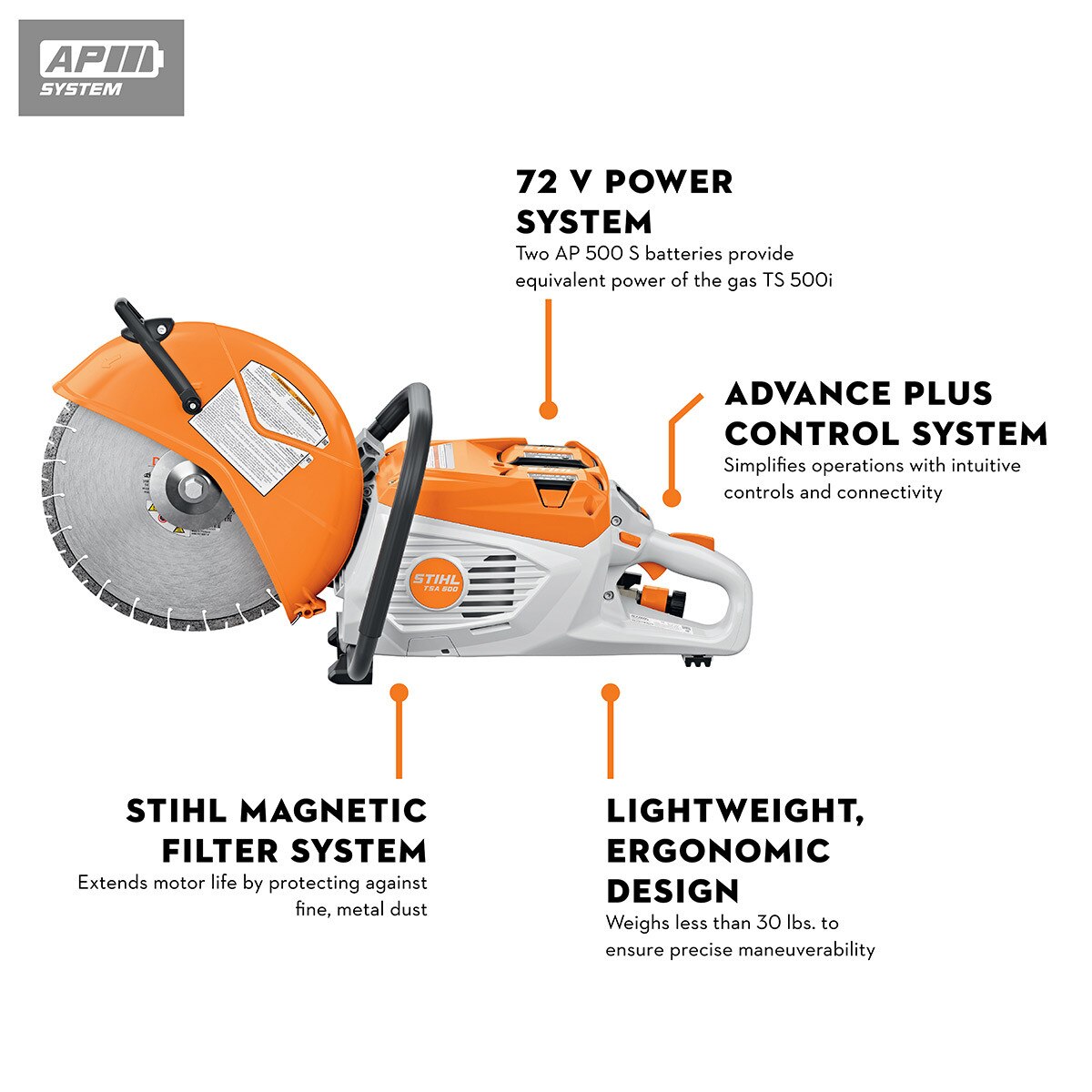

• Gas-like cutting performance from a battery-powered saw
• 14" wheel capacity for professional cutting jobs
• Cuts concrete, steel, masonry, pipe, and more
• No fuel mixing, pull starts, or engine idling
• Brushless motor for efficient, low-maintenance performance
• Magnesium guard with integrated water flow for better visibility
• IPX4-rated design for tough jobsite conditions
• Bare tool option for users already running compatible STIHL batteries
Professional Battery Power for Tough Cutting
The STIHL TSA 500 is built for contractors who need the cutting performance of a professional cut-off saw with the benefits of battery power. Its 14" cutting wheel capacity and powerful battery system make it a strong option for concrete, steel, masonry, hardscaping, and utility work.
With STIHL Constant Power technology, the saw is designed to maintain strong cutting performance as the battery discharges. That means crews can keep working without the gradual power drop that can happen with some battery tools.
Built for Durability and Control
The brushless motor helps improve efficiency while reducing maintenance compared to a gas-powered engine. STIHL’s Magnetic Filter system helps protect internal components from metal dust and particles, supporting longer service life in demanding cutting applications.
The magnesium guard includes integrated water flow to help control dust, improve visibility, and keep the cut cleaner. The ergonomic handle design helps operators guide the saw with better control during precision cuts.
Smart Operation and Jobsite-Ready Features

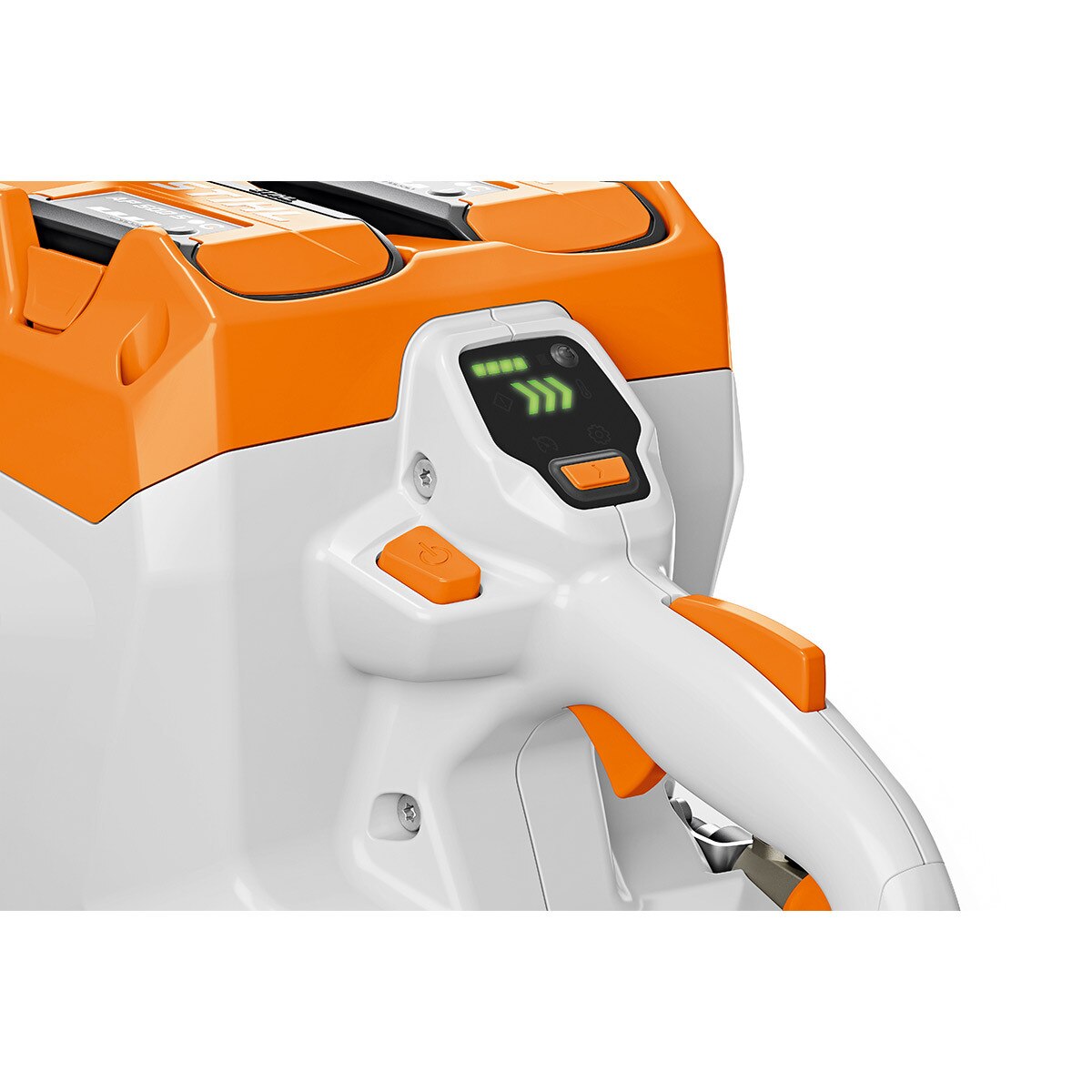

The Advance Plus control system gives operators intuitive control and smart connectivity. The IPX4-rated design helps protect the saw from splash water, making it better suited for real jobsite conditions.
Technical Specs
| Power Source | Battery |
| Maximum Wheel Size | 14" |
| Cutting Capacity | 4.92" |
| Weight | 28.8 lbs. with two AP 500 S batteries |
| Motor Type | Brushless |
| Water Protection Rating | IPX4 |
| Battery / Charger Included | No, bare tool only |
| MFG Part Number | TA01 011 6601 US |
Compatibility and Recommended Use
The STIHL TSA 500 is designed for professional contractors working in construction, hardscaping, landscaping, utility work, and below-ground applications. It is recommended for cutting concrete, reinforced concrete, steel, masonry, brick, natural stone, paving stone, pipe, and rebar.
This model is sold as a bare tool without batteries or charger. It is best suited for users already running compatible STIHL battery equipment or contractors looking to add a high-performance battery cut-off saw to their fleet.
Technical Specs
| Power Source | Battery |
| Maximum Wheel Size | 14" |
| Cutting Capacity | 4.92" |
| Weight | 28.8 lbs. with two AP 500 S batteries |
| Motor Type | Brushless |
| Water Protection Rating | IPX4 |
| Battery / Charger Included | No, bare tool only |
| MFG Part Number | TA01 011 6601 US |
Diamond Blade Cutting Depths
Blade Diameter | Max. Cutting Depth |
9" | 3" |
10" | 3.94" |
12" | 4" |
14" | 5" |
16" | 6" |
Diamond Blade Recommended RPMs
Blade Diameter | Recommended RPM | Max. RPM |
4" | 9072 | 15000 |
4- ½" | 8063 | 13300 |
5" | 7257 | 12000 |
6" | 6048 | 10185 |
7" | 5184 | 8730 |
8" | 4536 | 7640 |
9" | 4032 | 6790 |
10" | 3629 | 6115 |
12" | 3024 | 5095 |
12" High Speed | N/A | 6300 |
14" | 2592 | 4395 |
14" High Speed | N/A | 5400 |
16" | 2268 | 3820 |
16 High Speed | N/A | 4725 |
18" | 2016 | 3395 |
20 | 1814 | 3055 |
22 | 1649 | 2780 |
24" | 1512 | 2550 |
26 | 1396 | 2350 |
28" | 1296 | 2185 |
30 | 1210 | 2040 |
32" | 1134 | 1910 |
36" | 1008 | 1700 |
42" | 864 | 1455 |
48" | 756 | 1275 |
